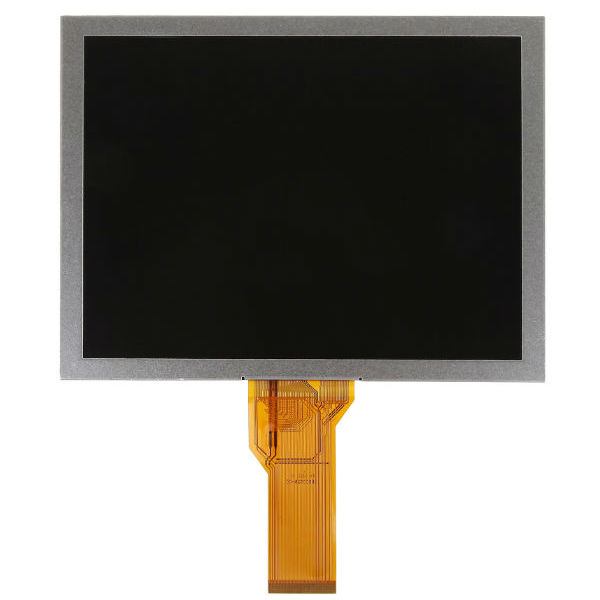

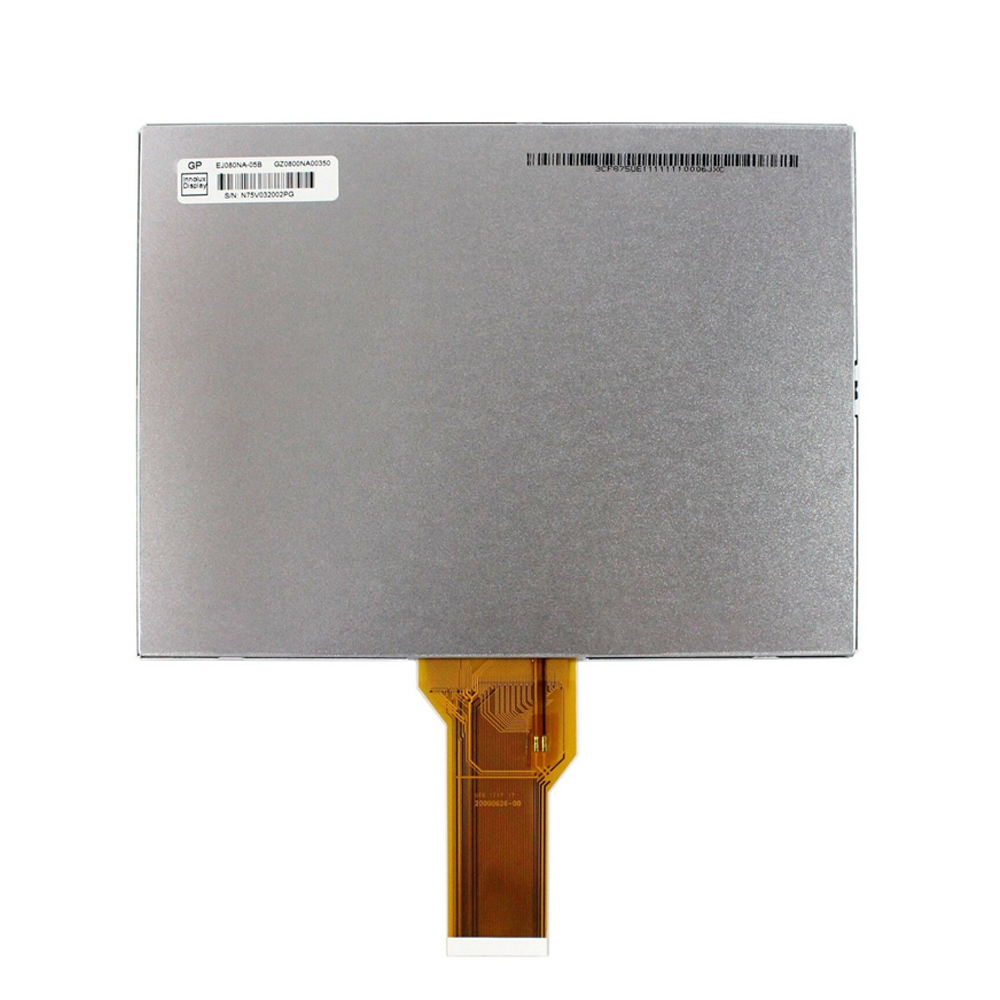

Chimei Innolux EJ080NA-05B Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | EJ080NA-05B |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 8.0” | Designed For | Digital Photo Frame，Portable DVD Player | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | - | |
| Features : | WLED Backlight，U/D.L/R Reverse，6/8bit，Matte | |||
Chimei Innolux EJ080NA-05B Optical Details
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) | |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | X:0.310; Y:0.330 | Display Colors | 262K/16.7M (6-bit / 6-bit + Dithering) |
Color Temperature | 6638K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
Chimei Innolux EJ080NA-05B Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600, WVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.0675*0.2025 mm | Pixel Pitch (W*H) | 0.2025*0.2025 mm [125PPI] | |
| Physical Size : | Active Viewing(mm) | 162(W)*121.5(H) mm | Bezel Area (mm) | 164.8(W)*124.3(H) mm |
| Outline Dim.(mm) | 183(W)*141(H) mm | Depth(mm) | 5.6±0.3 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (W:H) | Orientation | Landscape type | |
| Other Spec : | Weight | 241g (Typ.) | Surface | Antiglare |
Chimei Innolux EJ080NA-05B Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 2.138W |
| Time Controller (T-CON) : | Embedded T-CON |
Chimei Innolux EJ080NA-05B Interface Details
| Signal Electrical : | Signal Interface | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | ||||
| Signal Electrical : | Voltage Input | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 5.5/32.0/0.2/-0.2mA (Typ.)(ICC/IAVDD/IGH/IGL) | ||||
| Consumption | 0.356W (Typ.) | |||||||
| Interface Features : | Position | - | Physical Type | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| 0.5mm | 50pins | 1 pcs | DRGB-50P1C8B-115A | |||||
Chimei Innolux EJ080NA-05B Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S9P | Position | Edge light type | |||
| Exchange | - | Lamp Shape | Array | Lamp Life | 20K(Min.) (Hours) | ||||
| Lamp Electrical : | Voltage Supply | 9.9±0.6V | Current Supply | 180±18mA | |||||
| Consumption | 1.782W (Typ.) | ||||||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | |||||
| Backlight Driver : | No | ||||||||
Chimei Innolux EJ080NA-05B Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 30pcs / box | 11.71±0.59 Kgs | 530*367*260 mm |
