| Project | Describe |

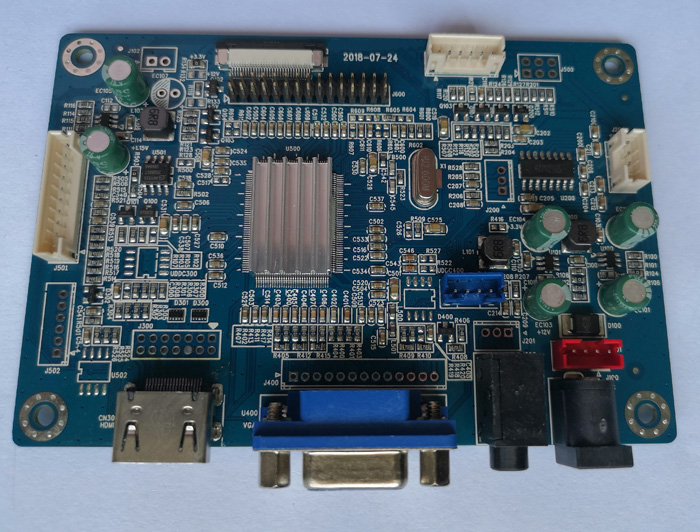

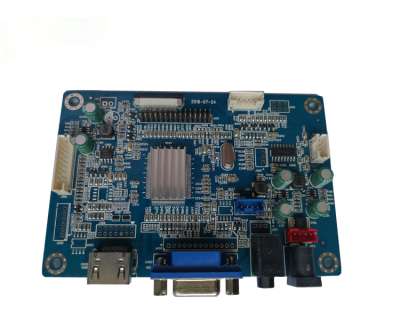

| Product name | XH-EDP520G |
| Chip solution | MSTAR single chip series |
| Support maximum resolution | 1920*1200 |
| Applicable specifications | Industrial LCD driver board, EDP LCD driver board, DisplayPort interface |
| Interface signal | 1 way VGA input / output, 1 HDMI input, 1 audio input / output, 2 * 2W power amplifier output |
| Input power | +12V single power supply or 5V power supply, support large screen power supply standby processing |
| Function | DP LCD driver board: it can support automatic sensitivity, knob dimming, multi language, DICOM brightness correction and gamma setting (preset 7 gamma curves). |
| LCD interface | 4 sets of lanes DisplayPort interfaces |
| Storage conditions | The temperature is - 40 ℃ to 80 ℃; Relative humidity 5% to 85% |
| Working conditions | Temperature - 20 ℃ to 70 ℃; Relative humidity 20% to 80% |
| Size | 112*16*14mm |
| Applicable occasions | Industrial control display, special occasion display, EDP screen, DisplayPort screen, etc |
