| Project | Describe |

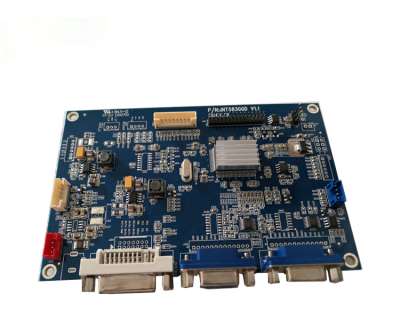

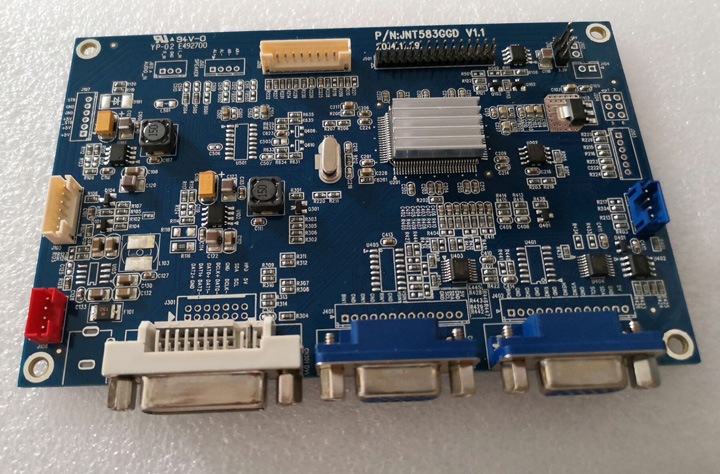

| Product name | JNT583GGD |
| Chip solution | GM Series |
| Support maximum resolution | 1920*1200 |
| Interface signal | 2-way VGA input / output, 1-way HDMI input, 1-way audio input and 1-way audio output |
| Input power | +12V single power supply or 5V power supply. Support large screen power supply standby processing |
| Function | VGA ring out LCD driver board: it can support automatic sensitivity, knob dimming, multi language, DICOM brightness control, gamma control (preset 7 gamma curves). The second way VGA can be configured as input or output function. When it is configured as output, the driving load capacity is doubled. It can carry four ways of VGA signal, which is convenient for long-distance transmission. |
| LCD interface | 2 LVDS |
| Storage conditions | The temperature is - 40 ℃ to 80 ℃; Relative humidity 5% to 85% |
| Working conditions | Temperature - 40 ℃ to 70 ℃; Relative humidity 20% to 80% |
| Size | 140*60*12mm |
| Applicable occasions | Dual VGA industrial display, LCD driver board, wide temperature LCD control board |
