| project | describe |

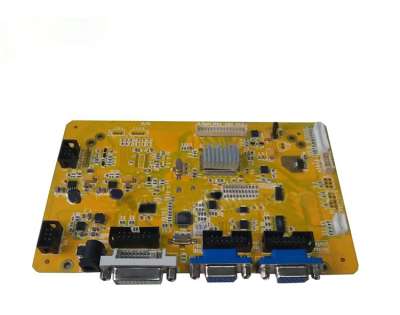

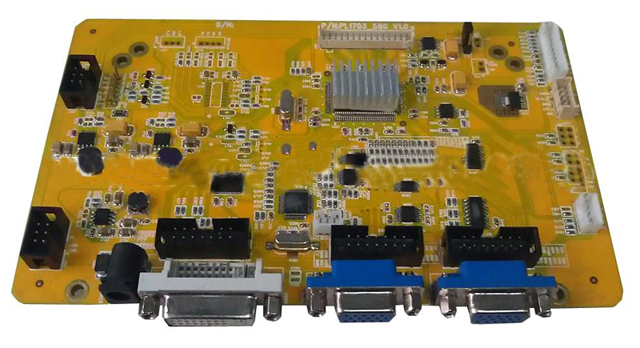

| Product name | PL1703-58G |
| Chip solution | Gm series |
| Support maximum resolution | 1920*1200 |
| Applicable specifications | Industrial LCD driver board |
| Interface signal | 1-way VGA input, 1-way DVI input, can ring out VGA |
| Input power | +12V single power supply, or 5V power supply |
| function | DVI ring out VGA LCD driver board, which can support automatic sensitivity, knob dimming, multi language, DICOM brightness control, gamma control (preset 7 gamma curves) |
| LCD interface | 2 LVDS |
| Storage conditions | The temperature is - 40 ℃ to 80 ℃; Relative humidity 5% to 85% |
| Working conditions | Temperature - 40 ℃ to 70 ℃; Relative humidity 20% to 80% |
| Size | 170*105*15mm |
| Applicable occasions | Ring out VGA industrial display, wide temperature LCD driver board, industrial LCD driver board |
