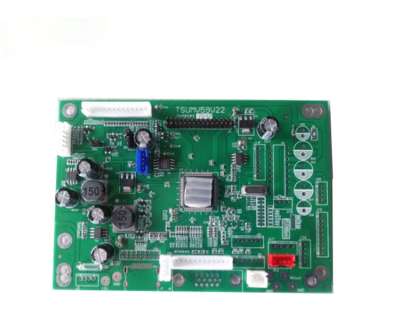

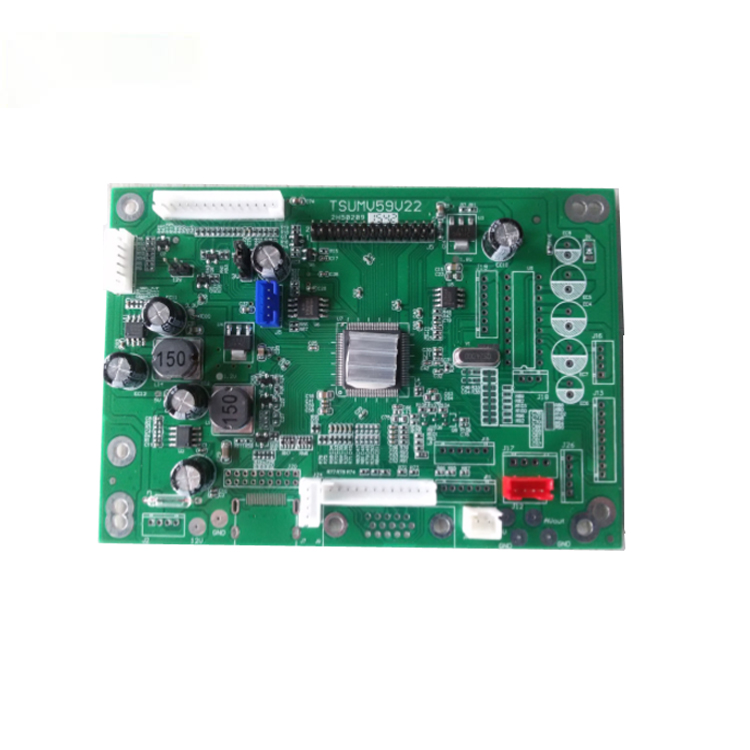

  • TSUMV59V22 Can drive the screen of G133HAN01.1
  • TSUMV59V22 Can drive the screen of G133HAN01.1
  • Model:TSUMV59V22
  • Brand:Xuhong
  • Aximum:1920×1080
  • Size:
  • Maximum resolution supported:
  • Interface signal: HDMI、VGA、YPBPR、CVBS
  • LCDinterface:
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters

  • 　　Overview

    　　TSUMV59V22 is a driver solution that supports LCD displays. It can be equipped with a dual LVDS LCD display screen with an interface type, supporting a screen resolution of 1920 * 1080, and supporting online upgrades. TSUMV59V22 supports HDMI, VGA, YPBPR, three CVBS signal inputs, and CVBS output. Video Decoders support NTSC M, NTSC-J, NTSC-4.43, PAL (B, D, G, H, M, N, I, Nc).

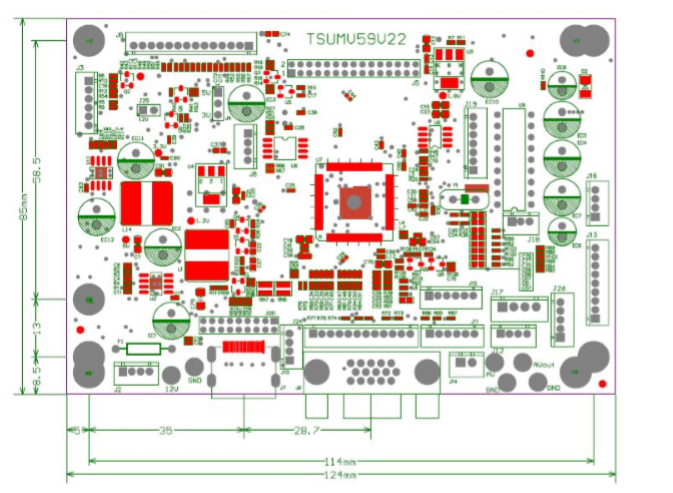

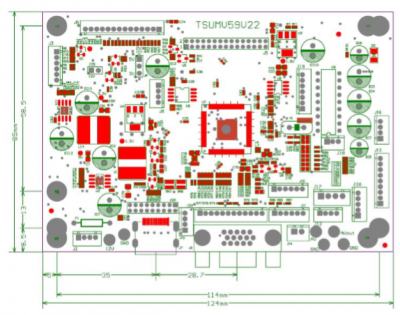

    Dimension
