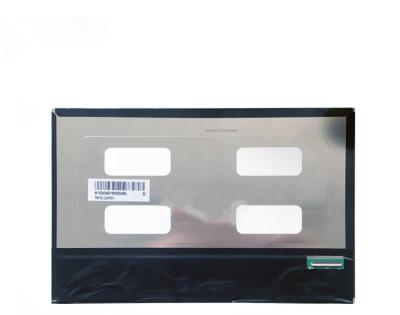

TIANMA TM101JDHP01 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM101JDHP01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.1” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -10 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight | |||
TIANMA TM101JDHP014 Optical Details
| Basic Information : | Luminance | 400 cd/m²(Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 10/15 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.324 | Display Colors | 16.7M (8-bit) |
Color Temperature | 7289K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM101JDHP01 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.0565*0.1695 mm | Pixel Pitch (W*H) | 0.1695*0.1695 mm (H*V) [149PPI] | |
| Physical Size : | Active Viewing(mm) | 216.96*135.6 mm (H*V) | Bezel Area (mm) | - |
| Outline Dim.(mm) | 229.46*149.1 mm (H*V) | Depth(mm) | 2.55/4.6 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Without | |||
| Other Spec : | Weight | 180g (Typ.) | Surface | Hard coating |
TIANMA TM101JDHP01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| D-IC Detail : | COG Built-in ST5821CA*3 + ST5084CA*1 |
TIANMA TM101JDHP01 Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||||||
| Signal Electrical : | Voltage Input | 3.3/11.0/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) | Current Input | 54.1/47.6/0.66/0.66mA (Typ.)(IDD/AIDD/IGH/IGL) | ||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||||
| Vigorconn | F62240-H1210A | 0.5mm | 40pins | 1 pcs | ||||||
TIANMA TM101JDHP01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S11P | Position | Edge light type |
| Exchange | - | Lamp Shape | Array | Lamp Life | 30K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 220/330mA (Typ./Max.) | Input Voltage | 9.0/9.6/10.8V (Min./Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
TIANMA TM101JDHP01 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 36 pcs / box | 12.6 Kgs | 544*365*250 mm (L*W*H) |
