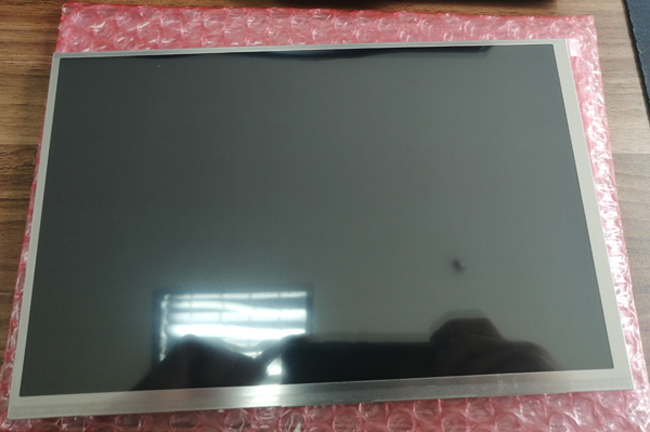

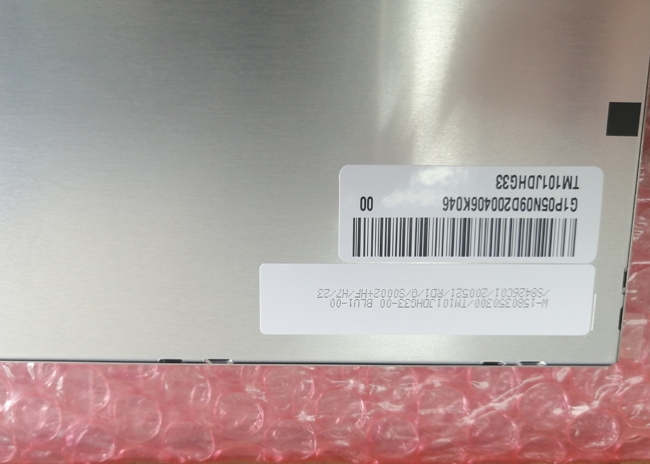

TIANMA TM101JDHG33 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM101JDHG33 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.1” | Designed For | Industrial，Medical Imaging，Outdoor High Brightness | |
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -40 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | Wide Temperature，High Brightness ，WLED Backlight，With LED Driver，Reverse I/F, 6/8bit | |||
TIANMA TM101JDHG33 Optical Details
| Basic Information : | Luminance | 900 cd/m²(Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.304; Wy:0.330 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6971K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 55% | sRGB | 76% coverage |
| Adobe RGB | 58% coverage | DCI-P3 | 57% coverage | |
| Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |

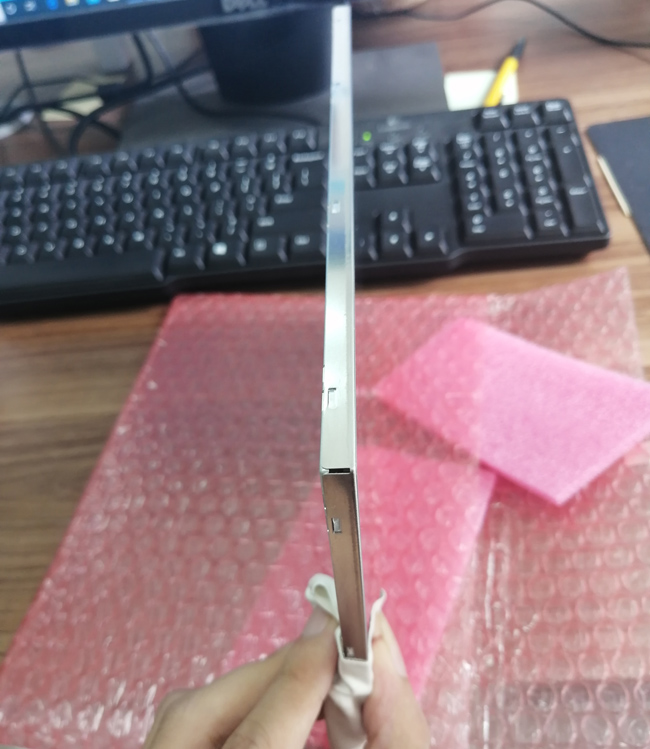

TIANMA TM101JDHG33 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.0565*0.1695 mm (H*V) | Pixel Pitch (W*H) | 0.1695*0.1695 mm (H*V) [149PPI] | |
| Physical Size : | Active Viewing(mm) | 216.96*135.6 mm (H*V) | Bezel Area (mm) | 219.96(W)*138.6(H) mm |
| Outline Dim.(mm) | 229.46*149.1 mm (H*V) | Depth(mm) | 6.2/9.6 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Without | |||
| Other Spec : | Weight | TBD | Surface | Hard coating |
TIANMA TM101JDHG33 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| D-IC Detail : | COG Built-in ST5084*1 + ST5821*3 |

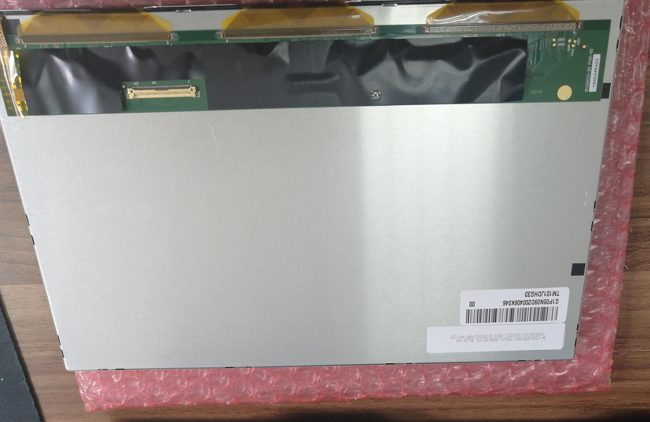

TIANMA TM101JDHG33 Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | ||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 230mA (Typ.) | |||||
| Consumption | 756mW (Typ.) | ||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||
| JAE | HD1S040HA1 | 0.5mm | 40pins | 1 pcs | |||||
TIANMA TM101JDHG33 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||
| Exchange | - | Lamp Shape | - | Lamp Life | 40K(Typ.) (Hours) | ||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | |||||
| Backlight Driver : | With LED Driver | ||||||||
| Driver Electrical : | Input Voltage | 18±4V | Input Current | 330mA (Typ.) | |||||
| Consumption | 5.94W (Typ.) | ||||||||
TIANMA TM101JDHG33 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 18 pcs / box | TBD | 544*365*250 mm (L*W*H) |
