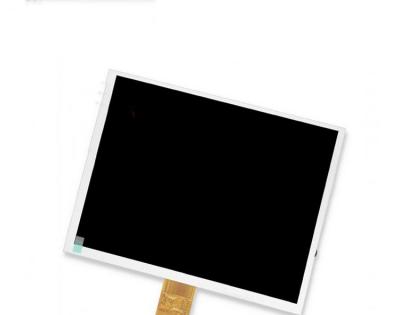

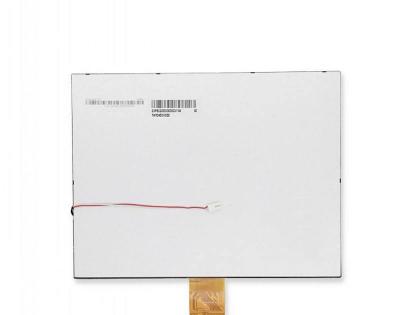

TIANMA TM104SDHG30 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM104SDHG30 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.4” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight， 180°C;Reverse，6/8bit，Matte | |||
TIANMA TM104SDHG30 Optical Details
| Basic Information : | Luminance | 350 cd/m²(Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.309; Wy:0.334 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6655K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 70% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM104SDHG30 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600, SVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.088*0.264 mm | Pixel Pitch (W*H) | 0.264*0.264 mm [96PPI] | |
| Physical Size : | Active Viewing(mm) | 211.2(W)*158.4(H) mm | Bezel Area (mm) | 214.2*162.5 mm (H*V) |
| Outline Dim.(mm) | 228.4*175.4 mm (H*V) | Depth(mm) | 6.2 (Typ.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | without hole | |||
| Other Spec : | Weight | 360g | Surface | Antiglare, Hard coating (3H) |
TIANMA TM104SDHG30 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| D-IC Detail : | COG Built-in HX8282, HX8696 |
TIANMA TM104SDHG30 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | - | ||||||
| Signal Electrical : | Voltage Input | 3.3/11.0/25.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 10.2/34.3/0.7/0.7mA (Typ.)(ICC/AIDD/IGH/IGL) | |||||
| Consumption | 176mW (Typ.) | ||||||||
| Interface Features : | Position | - | Physical Type | FPC | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||
| 0.5mm | 60pins | 1 pcs | |||||||
TIANMA TM104SDHG30 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S12P | Position | Edge light type | ||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 30K(Min.) (Hours) | |||||
| Lamp Electrical : | Voltage Input | 9.6V (Typ.) | Current Input | 240mA (Typ.) | ||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||||
| JST | BHSR-02VS-1 | 3.5 mm | 2pins | 1 pcs | BLE-2PINS-AC | |||||
| Backlight Driver : | No | |||||||||
TIANMA TM104SDHG30 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 20pcs / box | 9.83±0.49 Kgs | 530*350*250 mm (L*W*H) |
