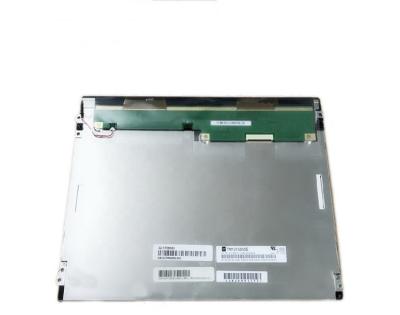

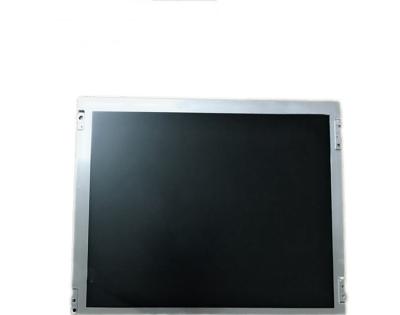

Original 12.1'' For TIANMA 800*600 LCD Screen Display Module Panel TM121SDSG05

• TIANMA TM121SDSG05 Application Details


  Basic Detail :	Panel Brand	TIANMA	Model Name	TM121SDSG05
  	Panel Type	a-Si TFT-LCD , LCM	Another Name
  	Panel Size	12.1”	Designed For	Industrial
  Maximum Ratings :	OP Temperature	-30 ~ 80 °C	ST Temperature	-30 ~ 80 °C
  	RoHS	RoHS	Vibration Level
  Features :	WLED Backlight, With LED Driver,180°C;Reverse，6/8bit


  TIANMA TM121SDSG05 Optical Details


  Basic Information :	Luminance	350 cd/m²(Typ.)	Contrast Ratio	700:1 (Typ.) (Transmissive)
  	Good View at	-	Response Speed	35 (Typ.)(Tr+Td) ms
  	Viewing Angle	80/80/65/75 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
  Color Performance :	Chromaticity	-	Display Colors	262K/16.7M (6-bit / 8-bit)
  	Color Temperature	-	White Variation	1.25/1.33 (Typ./Max.)(9 points)


  TIANMA TM121SDSG05 Mechanical Details


  Pixel Features :	Number of Pixel	800(RGB)*600, SVGA	Arrangement	RGB Vertical Stripe
  	Dot Pitch (W*H)	0.1025*0.3075 mm	Pixel Pitch (W×H)	0.3075*0.3075 mm  [82PPI]
  Physical Size :	Active Viewing(mm)	246(W)*184.5(H) mm	Bezel Area (mm)	250(W)*188.3(H) mm
  	Outline Dim.(mm)	279(W)*209(H) mm	Depth(mm)	5.73/9.0 (Typ./Max.) mm
  Outline Features :	Form Style	Flat Rectangle	Outline Shape
  	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
  Holes & Brackets :	Face mounting holes (4 pcs) on left, right bezel
  Other Spec :	Weight	540g (Typ.)	Surface	-


  TIANMA TM121SDSG05 Electronics Details


  Refresh Rate :	60Hz
  Reverse Scan :	Yes (180°)


  TIANMA TM121SDSG05  Interface Details


  Signal Systerm :		LVDS (1 ch, 6/8-bit)				Logic Voltage		-
  Signal Electrical :	Voltage Input			3.3V (Typ.)			Current Input	270/325mA (Typ./Max.)
  Interface Features :	Position			-			Physical Type	Connector
  Interface Detail :	Brand		Model		Pin Pitch		Pins	Amount	Pin Assignment
  	STM		MSB240420HE		1.25mm		20pins	1 pcs


  TIANMA TM121SDSG05 Backlight Details


  Lamp Features :

  Lamp Type

  WLED

  Quantity

  -

  Position

  Edge light type

  Exchange

  -

  Lamp Shape

  -

  Lamp Life

  30K(Min.) (Hours)

  Interface Features :

  Position

  -

  Physical Type

  Connector

  Interface Detail

  Brand

  Model

  Pin Pitch

  Pins

  Amount

  Pin Assignment

  STM

  MSB24038P5

  1.25 mm

  5 pins

  1 pcs

  Backlight Driver :

  Input Voltage

  12.0V (Typ.)

  Input Current

  TBD

  Backlight Driver :

  With LED Driver
