• Technical Parameters

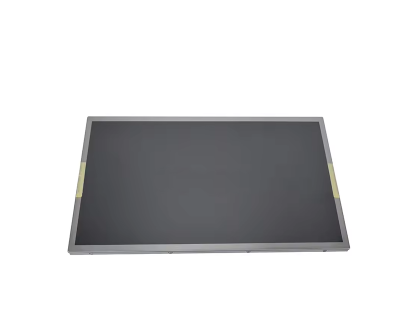

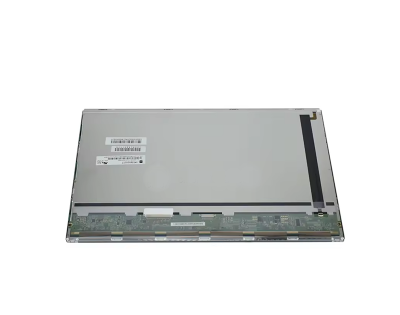

Tianma 15.6 inch TM156VDSG17 LVDS 30 Pins Interface 1920x1080 TFT LCD Display

• 1、TIANMA TM156VDSG17 Application Details

  Basic Detail :	Manufacturer	TIANMA	Model Name	TM156VDSG17
  	Panel Type	a-Si TFT-LCD , LCM
  	Panel Size	15.6 inch	Designed For	Industrial
  Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-20 ~ 70 °C
  	RoHS	RoHS	Vibration Level	1.2G (11.76 m/s²)
  Features :	WLED Backlight，Life≥50K hours，With LED Driver，Matte




  2、TIANMA TM156VDSG17 Mechanical Details

  Pixel Features :	Number of Pixel	1920(RGB)×1080, FHD	Arrangement	RGB Vertical Stripe
  	Dot Pitch(W×H)	0.05975×0.17925 mm	Pixel Pitch(W×H)	0.17925×0.17925 mm  [141PPI]
  Physical Size :	Active Viewing	344.16(W)×193.59(H) mm	Overall Dim.	363.8(W)×215.9(H) mm
  	Bezel Opening	347.55(W)×196.75(H) mm	Overall Depth	6.3±0.5 mm
  Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
  	Aspect Ratio(W:H)	16:9	Shape Style
  Fixation :	Side mounting holes (4-M2) on left, right   bezel
  Other Detail :	Mass	610g (Typ.)	Surface	Antiglare, Hard coating (3H)




  3、TIANMA TM156VDSG17 Optical Details

  Basic Detail :	Luminance	400 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
  	Good View at	Symmetry	Response Speed	25 (Typ.)(Tr+Td) ms
  	Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Operating Mode	SFT, Normally Black, Transmissive
  Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (8-bit)
  	Color Temperature	6485K	White Variation	1.25/1.39 (Typ./Max.)(5 points)
  1931 Color Gamut :	NTSC Ratio	72%	sRGB	97% coverage
  	Adobe RGB	75% coverage	DCI-P3	75% coverage
  	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)



  4、TIANMA TM156VDSG17 Electronics Details

  Refresh Rate :	60Hz
  Reverse Scan :	No
  Total Consumption :	13.9W (Typ.)




  5、TIANMA TM156VDSG17 Interface Detail

  Signal Electrical :	Input Current	580/1000mA (Typ./Max.)		Input Voltage	3.3V (Typ.)
  	Consumption	-		Signal Interface	LVDS (2 ch, 8-bit)
  Interface Features :	Position	-		Type	Connector
  Interface Detail :	Brand	Model	Pitch	Pins	Amount	Pin Assignment
  	HRS	MDF76KBW-30S-1H	1.0mm	30pins	1pcs




  6、TIANMA TM156VDSG17 Lightting Details

  Lamp Features :	Lamp Type	WLED		Amount		-		Position		Edge light type
  	Exchange	-		Lamp Shape		-		Lamp Life		50K(Typ.) (Hours)
  Interface Features :	Position	-		Type		Included in signal interface
  Backlight Driver :	With LED Driver
  Interface Detail :	Brand		Model		Pin Pitch		Pins		Amount		Configuration
  	HRS		DF19L-14P-1H		1.0 mm		14 pins		1 pcs
  Driver Electrical :	Input Voltage	12.0V (Typ.)				Input Current		1.00/1.25A (Typ./Max.)

  7、TIANMA TM156VDSG17 Packing Details

  Package Type	Pcs/Package	Package LWH (mm)	G.W (kgs)
  Carton	10	524×394×520	7.90
