• Technical Parameters

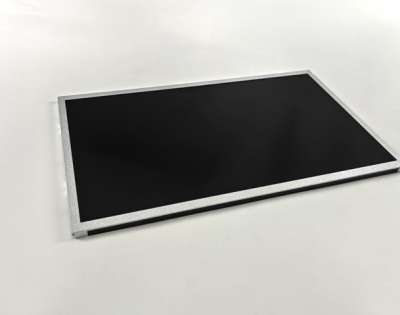

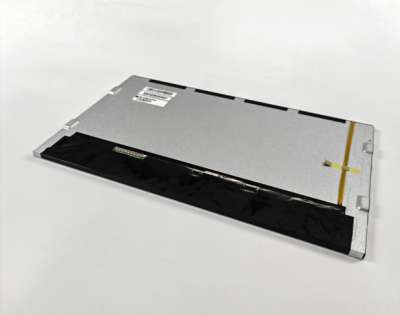

Tianma 15 6 inch P1560FHF2MB00 LVDS Interface 1920x1080 TFT LCD Display

• 1、TIANMA P1560FHF2MB00 Application Details

  Basic Information :	Brand	TIANMA	Model	P1560FHF2MB00
  	Type	LCM     a-Si TFT-LCD	Used For	Healthcare
  	Screen Size	15.6"
  Environment :	Storage Temp.	-20 ~~ 70 °C	Operating Temp.	-10 ~~ 60 °C
  	RoHS	RoHS	Vibration	-
  Typical Features :	WLED Backlight，With LED Driver，Matte




  2、TIANMA P1560FHF2MB00 Mechanical Details

  Pixel Features :	Resolution	1920(RGB)×1080, FHD	Dot Pitch(mm)	0.05975×0.17925 (H×V)
  	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.17925×0.17925 (H×V)  [141PPI]
  Mechanical Size :	Active Area(mm)	344.16(H) × 193.59(V)	Bezel Area(mm)	-
  	Outline Dim.(mm)	350.66(H) × 205.24(V)	Depth(mm)	3.0/6.1 (Typ./Max.)
  Outline Features :	Form Style	Flat Rectangle	Outline Shape	Slim (PCBA Bent, T≤3.0mm)
  	Aspect Ratio	16:9 (H:V)	Orientation	Landscape   type
  Mounting :	Without
  Other Spec :	Weight	346g	Treatment	Antiglare




  3、TIANMA P1560FHF2MB00 Optical Details

  Basic Information :	Luminance	350 cd/m² (Typ.)	Contrast Ratio	2000:1 (Typ.) (Transmissive)
  	Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Display Mode	SFT, Normally Black, Transmissive
  	Best View on	Symmetry	Response(ms)	35 (Typ.)(Tr+Td)
  Color Performance :	White Coordinate	X:0.304; Y:0.323	Display Colors	16.7M (8-bit)
  	Color Temperature	7059K	White Uniformity	1.33/1.43 (Typ./Max.)(9 points)
  1931 Color Gamut :	NTSC Ratio	72%	sRGB	91%
  	Adobe RGB	70%	DCI-P3	75%
  	Rec.2020	54%	Remarks	sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)




  4、TIANMA P1560FHF2MB00 Electronics Details

  Frame Rate :	60Hz
  Reverse Scan :	No
  Power Consumption :	5.73W (Typ.)




  5、TIANMA P1560FHF2MB00 Interface Details

  Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	246/369mA (Typ./Max.)
  	Consumption	0.81/1.22W (Typ./Max.)
  Signal Type :	LVDS (2 ch, 8-bit)			Signal Voltage	-
  Interface Features :	Position	-		Type	Connector
  Interface Detail :	Brand	Model	Quantity	Quantity	Pitch	Pin Configuration
  	STM	MSAK24025P40D	1 pcs	40 pins	0.5mm




  6、TIANMA P1560FHF2MB00 Backlight Details

  Backlight Features:	Type	WLED	Shape	-	Position	Edge light type
  	Replacement	-	Quantity	-	Life Time	30K(Min.) (Hours)
  Interface Features :	Position	-	Type	Included in signal interface
  Backlight Driver :	With LED Driver
  Driver Electrical :	Voltage Supply	12±1.2V	Current Supply	411/617mA (Typ./Max.)
  	Consumption	4.93/7.4W (Typ./Max.)




  7、TIANMA P1560FHF2MB00 Packing Details

  Package Type	Pcs/Package	Package LWH (mm)	G.W (kgs)
  	13	544×365×250	9.35
