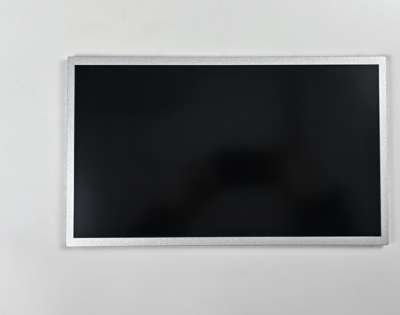

1、TIANMA P1560FHF2MA00 Application Details
Basic Information : | Brand | TIANMA | Model | P1560FHF2MA00 |
Type | LCM a-Si TFT-LCD | Used For | Healthcare | |
Screen Size | 15.6" | |||
Environment : | Storage Temp. | -30 ~ 85 °C | Operating Temp. | -30 ~ 85 °C |
RoHS | RoHS | Vibration | - | |
Typical Features : | Wide Temperature，Ultra High Brightness，WLED Backlight，Life≥50K hours，With LED Driver，Matte | |||
2、TIANMA P1560FHF2MA00 Mechanical Details
Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.05975×0.17925 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.17925×0.17925 (H×V) [141PPI] | |
Mechanical Size : | Active Area(mm) | 344.16(H) × 193.59(V) | Overall Dim. | 363.8(W)×215.9(H) mm |
Bezel Opening | 347.06(W)×196.49(H) mm | Depth(mm) | 9.7 (Typ.) mm | |
Outline Features : | Form Style | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | ||
Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
Other Spec : | Weight | TBD | Treatment | Antiglare |
3、TIANMA P1560FHF2MA00 Optical Details
Basic Information : | Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 1500:1 (Min.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | SFT, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 35 (Typ.)(Tr+Td) | |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6485K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4、TIANMA P1560FHF2MA00 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
5、TIANMA P1560FHF2MA00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | TBD | ||
Consumption | - | |||||
Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Quantity | Quantity | Pitch | Pin Configuration |
STM | MSBKT2407P30HB | 1 pcs | 30 pins | 1.0mm | LVDS-30P2C8B-160A | |
6、TIANMA P1560FHF2MA00 Backlight Details
Backlight Features: | Type | WLED | Amount | 10S6P | Position | Edge light type | |||||
Replacement | - | Lamp Shape | 6 strings | Life Time | 50K(Min.) (Hours) | ||||||
Interface Features : | Position | - | Type | Connector | |||||||
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | |||||
STM | MSB24038P8B | 1.25 mm | 8 pins | 1 pcs | |||||||
Backlight Driver : | With LED Driver | ||||||||||
Driver Electrical : | Voltage Supply | 12±1.2V | Current Supply | TBD | |||||||
Consumption | TBD | ||||||||||
