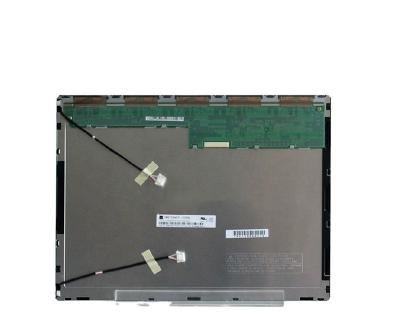

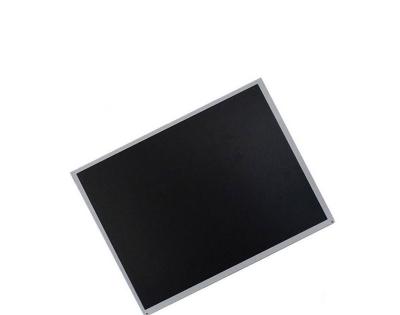

TIANMA TMS150XG1-10TB Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TMS150XG1-10TB |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 15” | Designed For | Desktop Monitor |
| Maximum Ratings : | OP Temperature | 0 ~ 55 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | |
| Features : | Matte |
TIANMA TMS150XG1-10TB Optical Details
| Basic Information : | Luminance | 250 cd/m²(Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.20/1.30 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 61% | sRGB | 83% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 63% coverage |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TMS150XG1-10TB Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.099*0.297 (mm) (H*V) | Pixel Pitch | 0.297*0.297 (mm) (H*V) [85PPI] |
| Physical Size : | Active Viewing(mm) | 304.128(H) *228.096(V) | Bezel Area (mm) | 307.4(H) *231.3(V) |
| Outline Dim. (mm) | 326.5(H) * 253.5(V) | Outline Depth | 11.3/12.0 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 1.00Kgs (Typ.) | Surface
| Antiglare |
TIANMA TMS150XG1-10TB Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 10.1W (Typ.) |
TIANMA TMS150XG1-10TB Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 500/700mA (Typ./Max.) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| HRS | DF14H-20P-1.25H | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-020C |
TIANMA TMS150XG1-10TB Backlight Details
| Lamp Features : | Lamp Type | CCFL | Quantity | 2 pcs | Position | Edge light type (Bottom side) |
| Exchange |
- | Lamp Shape | Straight | Lamp Life | 40K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply
| 610±61V | Current Supply | 3.5/7.0/7.5mA (Min./Typ./Max.) |
| Frequency | 50±10KHz | Startup Voltage | 1100/1600V (Max.)(Ta=+25/0℃) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL |
| Backlight Driver : | No |
TIANMA TMS150XG1-10TB Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 14 pcs / box | 14.6 Kgs | 378*368*315.5 mm |
