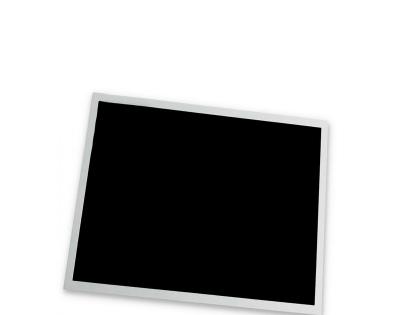

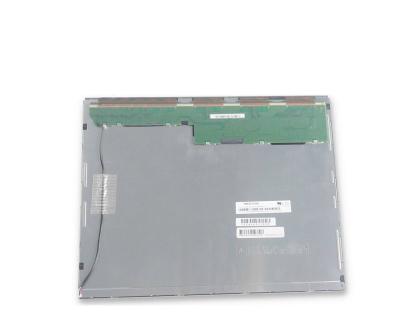

TIANMA TM150TDS50 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM150TDS50 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 15” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight，Life>=50K hours,With LED Driver,6/8bit,Matte | |||
TIANMA TM150TDS50 Optical Details
| Basic Information : | Luminance | 400 cd/m²(Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 8 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 63% | sRGB | 80% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 65% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM150TDS50 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.099*0.297 (mm) (H*V) | Pixel Pitch | 0.297*0.297 (mm) (H*V) [85PPI] | |
| Physical Size : | Active Viewing(mm) | 304.128(H) *228.096(V) | Bezel Area (mm) | 307.4(H) *231.3(V) |
| Outline Dim. (mm) | 326.5(H) *253.5(V) | Outline Depth | 11.8±0.3 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.00Kgs (Typ.) | Surface | Antiglare |
TIANMA TM150TDS50 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
TIANMA TM150TDS50 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | ||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 500/550mA (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||
| HRS | DF14H-20S-1.25C | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-010K | ||||
TIANMA TM150TDS50 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Bottom side) | ||||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | |||||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||||
| Interface Detail | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||||||||
| STM | MSB24038P5 | 1.25 mm | 5pins | 1 pcs | ||||||||||
| Backlight Driver : | With LED Driver | |||||||||||||
| Driver Electrical : | Input Current | 480/650mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||||||||||
TIANMA TM150TDS50 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 10 pcs / box | 11.7±0.6 Kgs | 378*343*430 mm |
