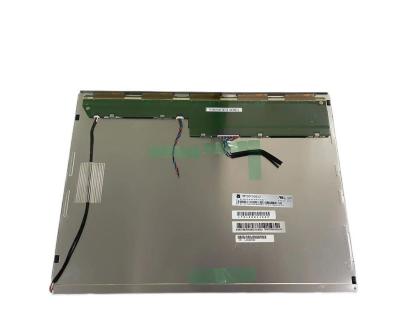

TIANMA TM150TDSG80 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM150TDSG80 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 15” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -10 ~ 65 °C | ST Temperature | -20 ~ 65 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | Lamp Repaceable，WLED Backlight,With LED Driver, 6/8bit,Matte | |||
TIANMA TM150TDSG80 Optical Details
| Basic Information : | Luminance | 350 cd/m²(Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 8 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
TIANMA TM150TDSG80 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768 [XGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.099*0.297 mm (H*V) | Pixel Pitch | 0.297*0.297 mm (H*V) [85PPI] | |
| Physical Size : | Active Viewing(mm) | 304.128*228.096 mm (H*V) | Bezel Area (mm) | 307.4*231.3 mm (H*V) |
| Outline Dim. (mm) | 326.5*253.5 mm (H*V) | Outline Depth | 10.0 (Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | TBD | Surface | Antiglare |
TIANMA TM150TDSG80 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
TIANMA TM150TDSG80 Interface Details
| Signal Systerm : | LVDS (2 ch, 6-bit) | Logic Voltage | - | ||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - | |||||
| Interface Features : | Position | - | Physical Type | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||
| P-TWO | 185083-20121 | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-080A | ||||
TIANMA TM150TDSG80 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | ||||||||
| Exchange | Replaceable | Lamp Shape | - | Lamp Life | 30K(Typ.) Hours | |||||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||||
| Lamp Driver | With LED Driver | |||||||||||||
| Interface Detail | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||||||||
| STM | MSB24038P5 | 1.25 mm | 5pins | 1 pcs | ||||||||||
| Driver Electrical : | Voltage Input | 12.0V | Current Input | - | ||||||||||
TIANMA TM150TDSG80 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 14 pcs / box | - | 438*402*464 mm |
