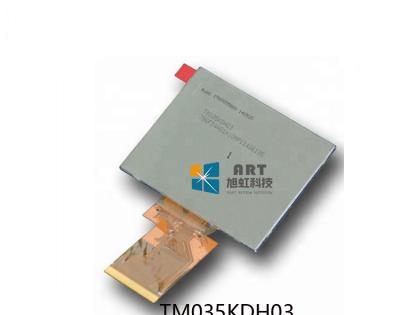

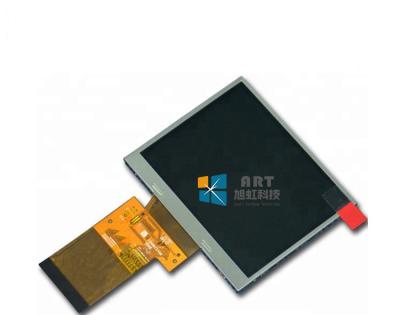

TIANMA TM035KDH03 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM035KDH03 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 3.5” | Designed For | Handheld&PDA,Digital Still Camera，Digital Video Camera | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight | |||
TIANMA TM035KDH03 Optical Details
| Basic Information : | Luminance | 300 cd/m²(Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 25 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.280; Wy:0.305 | Display Colors | 16.7M (6-bit + Dithering) |
| Color Temperature | 9273K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 75% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 56% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM035KDH03 Mechanical Details
| Pixel Features : | Number of Pixel | 320(RGB)*240, QVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.073*0.219 mm | Pixel Pitch (W×H) | 0.219*0.219 mm [115PPI] | |
| Physical Size : | Active Viewing(mm) | 70.08(W)*52.56(H) mm | Bezel Area (mm) | 72.88(W)*55.36(H) mm |
| Outline Dim.(mm) | 76.9(W)*63.9(H) mm | Depth(mm) | 3.15±0.2 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 30.0g | Surface | Clear, Hard coating (3H) |
TIANMA TM035KDH03 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Driver IC : | Built-in NV3035C |
| Time Controller (T-CON) : | Embedded T-CON |
TIANMA TM035KDH03 Interface Details
| Signal Systerm : | Digital RGB (8/24-bit) + SPI, CCIR601/656 | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | ||||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - | |||||||
| Consumption | 35/50mW (Typ./Max.) | ||||||||||
| Interface Features : | Position | - | Physical Type | FPC | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| 0.5mm | 54pins | 1 pcs | |||||||||
TIANMA TM035KDH03 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 6S1P | Position | Edge light type |
| Exchange | - | Lamp Shape | 1 string | Lamp Life | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Input Voltage | 19.2±2.4V | Input Current | 20/25mA (Typ./Max.) | ||
| Consumption | 384/510mW (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
TIANMA TM035KDH03 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 168 pcs / box | 8.94±0.45 Kgs | 530*350*250 mm |
