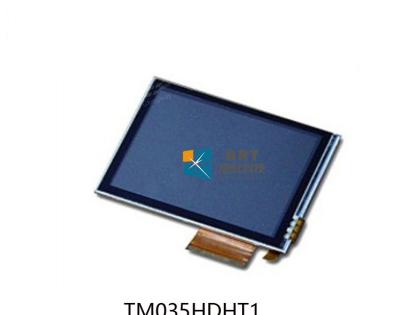

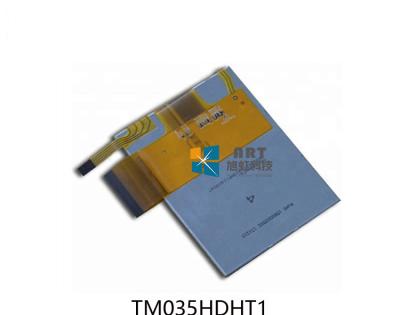

TIANMA TM035HDHT1 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM035HDHT1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 3.5” | Designed For | Handheld&PDA | |
| Maximum Ratings : | OP Temperature | -20 ~ 60 °C | ST Temperature | -30 ~ 70 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | Portrait type, Transflective,WLED Backlight | |||
TIANMA TM035HDHT1 Optical Details
| Basic Information : | Luminance | 100 cd/m² (Typ.) | Contrast Ratio | 150:1 (Typ.) (Transmissive) 2.5:1 (Typ.) (Reflective) |
| Good View at | 6 o'clock | Response Speed | 35 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 40/45/55/40 (Typ.)(CR≥10) | Operating Mode | ECB, Normally White, Transflective | |
| Color Performance : | Chromaticity | X:0.293; Y:0.307 | Display Colors | 262K (6-bit) |
Color Temperature | 8110K | White Variation | - | |
| 1931 Color Gamlt : | NTSC Ratio | 35% | sRGB | 48% coverage |
| Adobe RGB | 36% coverage | DCI-P3 | 36% coverage | |
| Rec.2020 | 26% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Tech | - | Reflectance | 5.5% (Typ.) |
TIANMA TM035HDHT1 Mechanical Details
| Pixel Features : | Number of Pixel | 240(RGB)*320, QVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.0745*0.2235 mm | Pixel Pitch (W×H) | 0.2235*0.2235 mm [113PPI] | |
| Physical Size : | Active Viewing(mm) | 53.64(W)*71.52(H) mm | Bezel Area (mm) | 56.64(H) *74.52(V) |
| Outline Dim.(mm) | 64(W)*85(H) mm | Depth(mm) | 2.93±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 3:4 (H:V) | Orientation | Portrait type | |
| Other Spec : | Weight | 33.5g | Surface | Hard coating |
TIANMA TM035HDHT1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Driver IC : | Built-in ILI9341 |
| Time Controller (T-CON) : | Embedded T-CON |
TIANMA TM035HDHT1 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) + SPI | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | ||||||||
| Signal Electrical : | Voltage Input | 2.8/15.0/-10.0V (Typ.)(VCC/VGH/VGL) | Current Input | - | |||||||
| Consumption | - | ||||||||||
| Interface Features : | Position | - | Physical Type | FPC | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| 0.5mm | 50pins | 1 pcs | |||||||||
TIANMA TM035HDHT1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 6S1P | Position | Edge light type |
| Exchange | - | Lamp Shape | 1 string | Lamp Life | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Input Voltage | 19.2V (Typ.) | Input Current | 20mA (Typ.) | ||
| Consumption | 384mW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
TIANMA TM035HDHT1 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 112 pcs / box | TBD | 516*336*226 mm |
