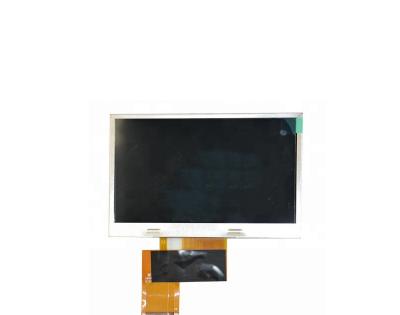

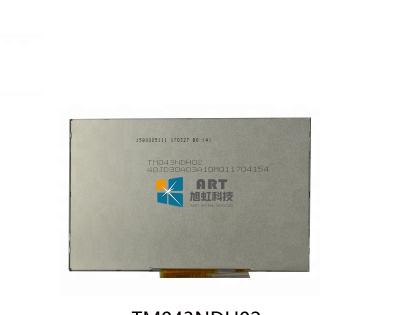

TIANMA TM043NDH02 Application Details
| Basic Detail : |
Panel Brand |
TIANMA |
Model Name |
TM043NDH02 |
| Panel Type |
a-Si TFT-LCD , LCM |
Another Name |
|
| Panel Size |
4.3” |
Designed For |
Portable Navigation，MP3 PMP |
| Maximum Ratings : |
OP Temperature |
-20 ~ 70 °C |
ST Temperature |
-30 ~ 80 °C |
| RoHS |
RoHS |
Vibration Level |
|
| Features : |
WLED Backlight,Matte |
TIANMA TM043NDH02 Optical Details
| Basic Information : |
Luminance |
300 cd/m² (Typ.) |
Contrast Ratio |
500:1 (Typ.) (Transmissive) |
| Good View at |
6 o'clock |
Response Speed |
20 (Typ.)(Tr+Td) ms |
| Viewing Angle |
70/70/70/50 (Typ.)(CR≥10) |
Operating Mode |
TN, Normally White, Transmissive |
| Color Performance : |
Chromaticity |
X:0.315; Y:0.335 |
Display Colors |
16.7M (8-bit) |
Color Temperature |
6337K |
White Variation |
1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
50% |
sRGB |
70% coverage |
| Adobe RGB |
53% coverage |
DCI-P3 |
52% coverage |
| Rec.2020 |
38% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM043NDH02 Mechanical Details
| Pixel Features : |
Number of Pixel |
480(RGB)×272, WQVGA |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch (W×H) |
0.066×0.198 (H×V) |
Pixel Pitch (W×H) |
0.198×0.198 (H×V) [128PPI] |
| Physical Size : |
Active Viewing(mm) |
95.04(H) × 53.856(V) |
Bezel Area (mm) |
99.6×56.7 mm (H×V) |
| Outline Dim.(mm) |
105.5(H) × 67.2(V) |
Depth(mm) |
2.9±0.3 mm |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
16:9 (H:V) |
Orientation |
Landscape type |
| Other Spec : |
Weight |
44.1g |
Surface |
Antiglare, Hard coating (3H) |
TIANMA TM043NDH02 Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
No |
| Driver IC : |
Built-in HX8257A |
| Time Controller (T-CON)： |
Embedded T-CON |
TIANMA TM043NDH02 Interface Details
| Signal Systerm : |
Parallel RGB (1 ch, 8-bit) |
Logic Voltage |
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD |
| Signal Electrical : |
Voltage Input |
3.3V (Typ.) |
Current Input |
- |
| Consumption |
74.0mW (Typ.) |
| Interface Features : |
Position |
- |
Physical Type |
FPC |
| Interface Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Pin Assignment |
| |
|
0.5mm |
40pins |
1 pcs |
|
TIANMA TM043NDH02 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
5S2P |
Position |
Edge light type |
| Exchange |
- |
Lamp Shape |
Array |
Lamp Life |
20K(Typ.) (Hours) |
| Lamp Electrical : |
Input Voltage |
16V (Typ.) |
Input Current |
40mA (Typ.) |
| Consumption |
640mW (Typ.) |
| Interface Features : |
Position |
- |
Physical Type |
I
ncluded in panel signal interface |
| Backlight Driver : |
No |
TIANMA TM043NDH02 Carton Details
| Package Box : |
Amount |
Weight |
Size (L×W×H) |
| 112 pcs / box |
TBD |
530×350×250 mm |
