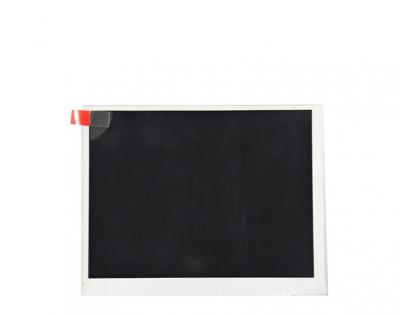

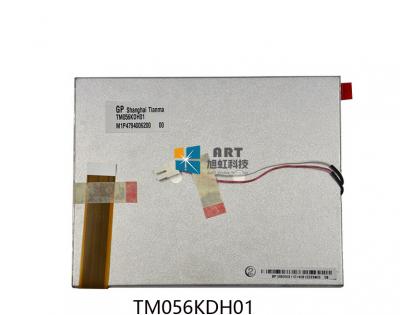

TIANMA TM056KDH01 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM056KDH01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 5.6” | Designed For | Industrial，Digital Photo Frame，Portable DVD Player，Video Door Phone | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight，U/D.L/R Reverse，Matte | |||
TIANMA TM056KDH01 Optical Details
| Basic Information : | Luminance | 200 cd/m² (Min.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Display Colors | Full color |
Color Temperature | 6638K | White Variation | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM056KDH01 Mechanical Details
| Pixel Features : | Number of Pixel | 320(RGB)×234 | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.118×0.362 mm | Pixel Pitch (W×H) | 0.354×0.362 mm [71PPI] | |
| Physical Size : | Active Viewing(mm) | 113.28(W)×84.708(H) mm | Bezel Area (mm) | 116.08(W)×87.51(H) mm |
| Outline Dim.(mm) | 126.5(W)×100(H) mm | Depth(mm) | 5.7 (Typ.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 123g (Typ.) | Surface | Antiglare |
TIANMA TM056KDH01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Driver IC : | Need external T-CON |
TIANMA TM056KDH01 Interface Details
| Signal Systerm : | TFT Specific Analog RGB | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 0.8/3.41/0.056/0.056mA (Typ.)(ICC/IAVDD/IGH/IGL) | |||||||
| Interface Features : | Position | - | Physical Type | FPC | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| 26pins | 1 pcs | ||||||||||
TIANMA TM056KDH01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 2S7P | Position | Edge light type | |||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 20K(Typ.) (Hours) | ||||||
| Lamp Electrical : | Input Voltage | 6.4V (Typ.) | Input Current | 140mA (Typ.) | |||||||
| Consumption | 896mW (Typ.) | ||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Backlight Driver : | No | ||||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLE-2PINS-AC | ||||||
TIANMA TM056KDH01 Carton Details
| Package Box : | Amount | Weight | Size (L×W×H) |
| 50 pcs / box | 10.09±5% Kgs | 530×350×250 mm |
