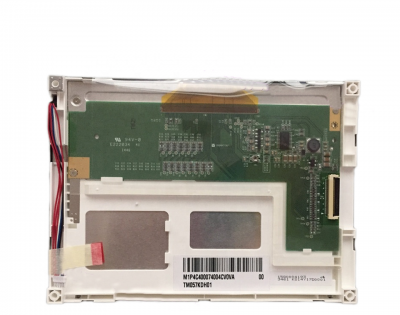

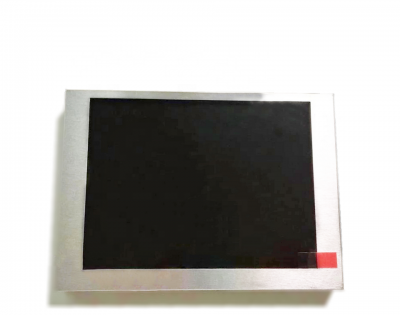

TIANMA TM057KDH01 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM057KDH01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 5.7” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight，Life>=50K hours,U/D.L/R Reverse，Matte | |||
TIANMA TM057KDH01 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Min.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.324; Wy:0.362 | Display Colors | 262K (6-bit) |
Color Temperature | 5814K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 73% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 55% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM057KDH01 Mechanical Details
| Pixel Features : | Number of Pixel | 320(RGB)×240, QVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.120×0.360 mm | Pixel Pitch (W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing(mm) | 115.2(W)×86.4(H) mm | Bezel Area (mm) | 118.2(W)×89.4(H) mm |
| Outline Dim.(mm) | 144(W)×104.6(H) mm | Depth(mm) | 12.8 (Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Fixation : | Rear mounting poles (4-Φ2.6) | |||
| Other Spec : | Weight | 160g (Typ.) | Surface | Antiglare, Hard coating (3H) |
TIANMA TM057KDH01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
TIANMA TM057KDH01 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | ||||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 145/225mA (Typ./Max.) | |||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| STARCONN | 089H33-000100-G2-R | 0.5mm | 33pins | 1 pcs | DRGB-33P1C6B-020B | ||||||
TIANMA TM057KDH01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 5S3P | Position | Edge light type | |||||
| Exchange | - | Lamp Shape | 3 strings | Lamp Life | 50K(Typ.) (Hours) | ||||||
| Lamp Electrical : | Input Voltage | 14.85/18.15V (Min./Max.) | Input Current | 25mA (Typ.) | |||||||
| Consumption | 1.238W (Typ.) | ||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Backlight Driver : | No | ||||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| JST | SHLP-06V-S-B | 1.0mm | 6 pins | 1 pcs | BLE-6PINS-AAACCC | ||||||
TIANMA TM057KDH01 Carton Details
| Package Box : | Amount | Weight | Size (L×W×H) |
| 40 pcs / box | 9.396 Kgs | 530×350×250 mm |
