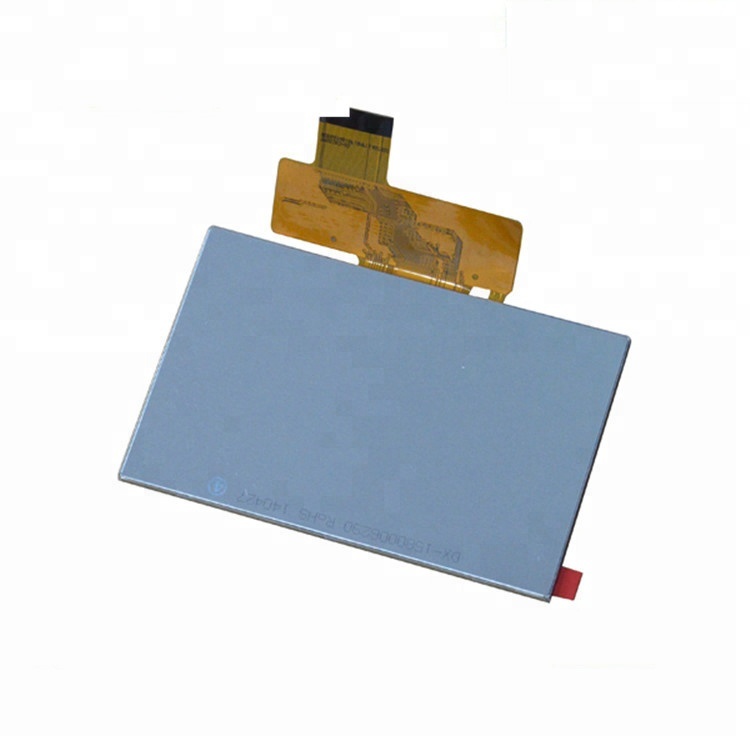

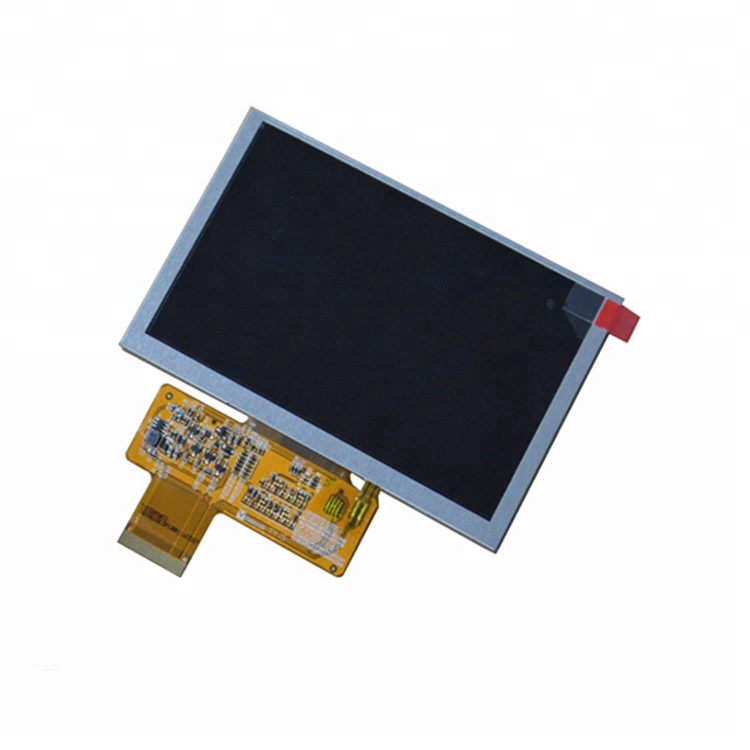

TIANMA TM050RBH01 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM050RBH01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 5.0” | Designed For | Industrial，Portable Navigation，MID UMPC, MP3 PMP | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | With Touch，WLED Backlight，Matte | |||
TIANMA TM050RBH01 Optical Details
| Basic Information : | Luminance | 300 cd/m² (Min.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.320; Wy:0.340 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6066K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM050RBH01 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)×480, WVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.045×0.135 (H×V) | Pixel Pitch (W×H) | 0.135×0.135 (H×V) [188PPI] | |
| Physical Size : | Active Viewing(mm) | 108(H) × 64.8(V) | Bezel Area (mm) | - |
| Outline Dim.(mm) | 120.7(W)×75.8(H) mm | Depth(mm) | 4.4/6.30 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type | |
| Touchscreen : | TP Controller | Without touch controller | TP Interface | - |
| Touch Points | 1 point | TP Technology | 4-wire Resistive Touch | |
| Other Spec : | Weight | 76.3g | Surface | Antiglare, Hard coating (3H) |
TIANMA TM050RBH01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Driver IC : | COG Built-in HX8664 + HX8264 |
| Time Controller (T-CON) | Embedded T-CON |
TIANMA TM050RBH01 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | ||||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | TBD | |||||||
| Interface Features : | Position | - | Physical Type | FPC | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| 0.3mm | 45pins | 1 pcs | |||||||||
TIANMA TM050RBH01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 6S3P | Position | Edge light type |
| Exchange | - | Lamp Shape | Array | Lamp Life | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Input Voltage | 19.2V (Typ.) | Input Current | 60/75mA (Typ./Max.) | ||
| Consumption | 1.152W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
TIANMA TM050RBH01 Carton Details
| Package Box : | Amount | Weight | Size (L×W×H) |
| 150 pcs / box | 17.07±0.85 Kgs | 544×365×250 mm |
