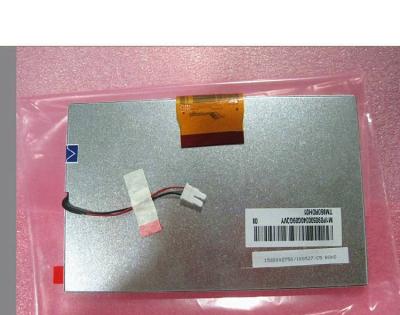

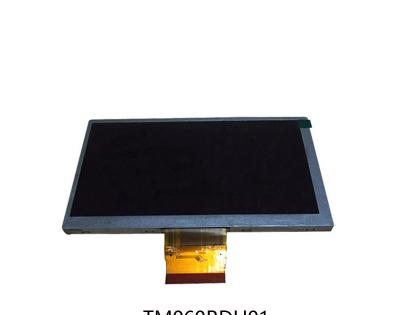

TIANMA TM060RDH01 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM060RDH01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 6.0” | Designed For | Industrial，Automotive Display，Digital Photo Frame，Portable DVD player | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80°C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight，6/8bit, U/D.L/R Reverse，Matte | |||
TIANMA TM060RDH01 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Min.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 20/30 (Typ./Max.)(Tr+Td) ms | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.330 | Display Colors | 262K/16.2M (6-bit / 6-bit + Dithering) |
Color Temperature | 6914K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM060RDH01 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)×480, WVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.0555×0.1538 mm | Pixel Pitch (W×H) | 136.4(W)×76.7(H) mm | |
| Physical Size : | Active Viewing(mm) | 133.2(W)×73.8(H) mm | Bezel Area (mm) | 136.4(W)×76.7(H) mm |
| Outline Dim.(mm) | 145.5(W)×87.8(H) mm | Depth(mm) | 5.4±0.3 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 113.3g | Surface | Antiglare |
TIANMA TM060RDH01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Consumption : | 1.644W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
TIANMA TM060RDH01 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | ||||||||
| Signal Electrical : | Voltage Input | 3.3/9.84/19.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 5/25/0.4/0.4mA (Typ.)(ICC/IVDD/IGH/IGL) | |||||||
| Interface Features : | Position | 0.3W (Typ.) | Physical Type | FPC | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| 0.5mm | 60pins | 1 pcs | |||||||||
TIANMA TM060RDH01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S7P | Position | Edge light type | |||||||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 20K(Typ.) (Hours) | ||||||||||
| Lamp Electrical : | Input Current | 140/175mA (Typ./Max.) | Input Voltage | 9.6V (Typ.) | |||||||||||
| Consumption | 1.344/1.680W (Typ./Max.) | ||||||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||||||
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLE-2PINS-AC | ||||||||||
| Backlight Driver : | No | ||||||||||||||
TIANMA TM060RDH01 Carton Details
| Package Box : | Amount | Weight | Size (L×W×H) |
| 50 pcs / box | 8.656 Kgs | 530×350×250 mm |
