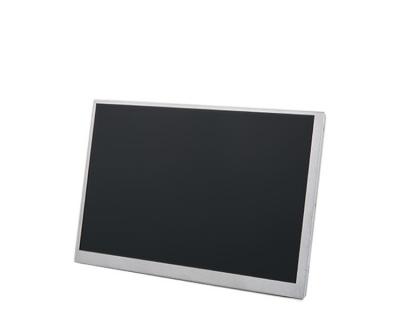

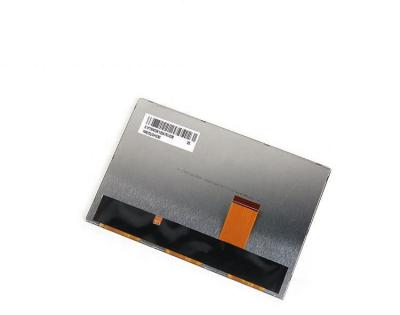

TIANMA TM070JDHG30 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM070JDHG30 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 7.0” | Designed For | Industrial，Medical Imaging，VOIP Phone | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80°C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight | |||
TIANMA TM070JDHG30 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Min.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 35 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.306; Wy:0.329 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6869K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 70% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM070JDHG30 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.039×0.117 mm | Pixel Pitch (W×H) | 0.117×0.117 mm [217PPI] | |
| Physical Size : | Active Viewing(mm) | 149.76(W)×93.6(H) mm | Bezel Area (mm) | 152.76(W)×96.6(H) mm |
| Outline Dim.(mm) | 161(W)×107(H) mm | Depth(mm) | 3.35 (Typ.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Fixation : | Without | |||
| Other Spec : | Weight | 120g (Typ.) | Surface | Hard coating (3H) |
TIANMA TM070JDHG30 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
TIANMA TM070JDHG30 Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | |||||||||
| Signal Electrical : | Voltage Input | 3.3/10.4/16/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) | Current Input | 53/41.5/0.41/0.41mA (Typ.)(IDD/AIDD/IGH/IGL) | |||||||
| Interface Features : | Position | - | Physical Type | FPC | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| 0.5mm | 40pins | 1 pcs | |||||||||
TIANMA TM070JDHG30 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S7P | Position | Edge light type | ||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 30K(Typ.) (Hours) | |||||
| Lamp Electrical : | Input Current | 140mA (Typ.) | Input Voltage | 9.3/10.2V (Typ./Max.) | ||||||
| Consumption | 1.3/1.43W (Typ./Max.) | |||||||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||||||
| Backlight Driver : | No | |||||||||
