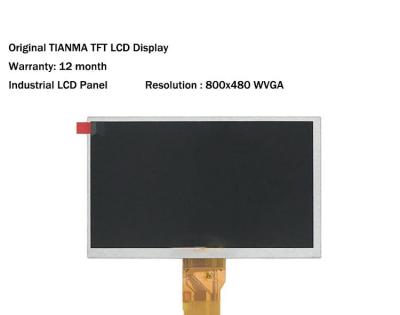

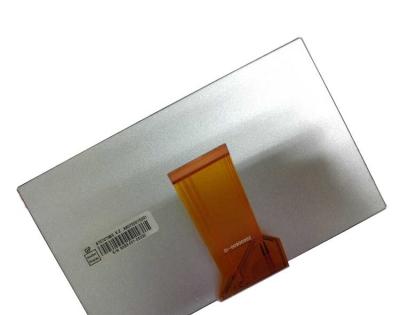

TIANMA TM070RDH13 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM070RDH13 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 7.0” | Designed For | Industrial，Digital Photo Frame，Portable DVD Player | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80°C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight， U/D,L/R Reverse，6/8bit，Matte | |||
TIANMA TM070RDH13 Optical Details
| Basic Information : | Luminance | 250 cd/m² (Min.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Display Colors | 262K/16.2M (6-bit / 6-bit + Dithering) |
Color Temperature | 6638K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 55% | 76 | 69% coverage |
| Adobe RGB | 58% coverage | DCI-P3 | 57% coverage | |
| Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM070RDH13 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.0642×0.1790 mm (H×V) | Pixel Pitch (W×H) | 0.1926×0.1790 mm (H×V) [134PPI] | |
| Physical Size : | Active Viewing(mm) | 154.08×85.92 mm (H×V) | Bezel Area (mm) | 157.08×89.39 mm (H×V) |
| Outline Dim.(mm) | 164.9×100 mm (H×V) | Depth(mm) | 5.7±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Fixation : | Without | |||
| Other Spec : | Weight | 160g | Surface | Antiglare |
TIANMA TM070RDH13 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Consumption : | 1.330/1.522W (Typ./Max.) |
| Time Controller (T-CON) : | Embedded T-CON |
TIANMA TM070RDH13 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 3.22/15.69/0.20/0.20mA (Typ.)(DIDD/AIDD/IGH/IGL) | |||||||
| Interface Features : | Position | - | Physical Type | FPC | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| 0.5mm | 50pins | 1 pcs | DRGB-50P1C8B-115A | ||||||||
TIANMA TM070RDH13 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S6P | Position | Edge light type | ||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 20K(Typ.) (Hours) | |||||
| Lamp Electrical : | Input Current | 120/180mA (Typ./Max.) | Input Voltage | 9.6±0.9V | ||||||
| Consumption | 1.152/1.267W (Typ./Max.) | |||||||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||||||
| Backlight Driver : | No | |||||||||
TIANMA TM070RDH13 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
| 50 pcs / box | 11.23±0.56 Kgs | 530×350×250 mm |
