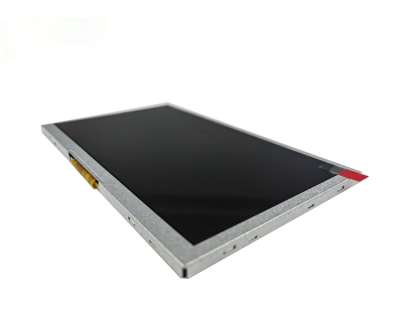

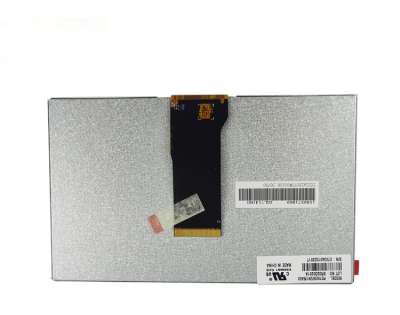

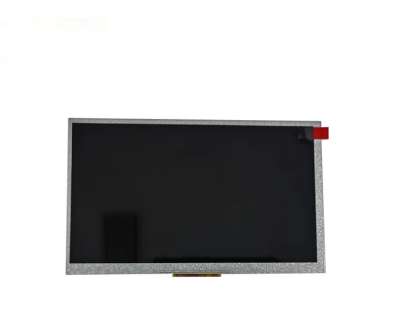

1、TIANMA P0700WVN1MA00 Application Details
Basic Information : | Brand | TIANMA | Model | P0700WVN1MA00 |
Type | LCM a-Si TFT-LCD | Used For | Industrial，Outdoor High Brightness，Automotive Display | |
Screen Size | 7.0" | Alias | ||
Environment : | Storage Temp. | -40 ~ 90 °C | Operating Temp. | -30 ~ 85 °C |
RoHS | RoHS | Vibration | 6.8G (66.64 m/s²) | |
Typical Features : | Wide Temperature，6.8G Vibration，Ultra High Brightness，WLED Backlight，Life≥50K hours，U/D,L/R Reverse，Matte | |||
2、TIANMA P0700WVN1MA00 Mechanical Details
Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.0642×0.1790 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1926×0.1790 (H×V) [134PPI] | |
Mechanical Size : | Active Area(mm) | 154.08(H) × 85.92(V) | Bezel Area(mm) | 157.08(H) × 89.39(V) |
Outline Dim.(mm) | 164.9(H) × 100(V) | Depth(mm) | 5.7±0.3 | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
Other Spec : | Weight | 160g | Treatment | Antiglare |
3、TIANMA P0700WVN1MA00 Optical Details
Basic Information : | Luminance(cd/m²) | 1000 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
Best View on | 12 o'clock | Response(ms) | 25 (Typ.)(Tr+Td) | |
Color Performance : | White Coordinate | X:0.329; Y:0.355 | Display Colors | 16.7M (8-bit) |
Color Temperature | 5630K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 54% | sRGB | 74% coverage |
Adobe RGB | 57% coverage | DCI-P3 | 57% coverage | |
Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4、TIANMA P0700WVN1MA00 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
Power Consumption : | 2.32W |
5、TIANMA P0700WVN1MA00 Interface Details
Signal Electrical : | Voltage Supply | 3.3/10.4/16/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) | Current Supply | 8/20/0.4/0.8mA (Typ.)(DIDD/AIDD/IGH/IGL) | ||
Consumption | 250/400mW (Typ./Max.) | |||||
Signal Type : | TTL (1 ch, 8-bit) | Signal Voltage | 0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD | |||
Interface Features : | Position | - | Type | FPC | ||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
1 pcs | 50 pins | 0.5 mm | ||||
6、TIANMA P0700WVN1MA00 Lightting Details
Lamp Features : | Lamp Type | WLED | Amount | 3S8P | Position | Edge light type |
Exchange | - | Lamp Shape | Array | Lamp Life | 50K(Min.) (Hours) | |
Lamp Electrical : | Input Voltage | 9.6/10.8V (Typ./Max.) | Input Current | 200mA (Typ./Max.) | ||
Consumption | 1.92W (Typ.) | |||||
Interface Features : | Position | - | Type | Included in signal interface | ||
Backlight Driver : | No | |||||
7、TIANMA P0700WVN1MA00 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
16 | 520×345×74 | N/A |
