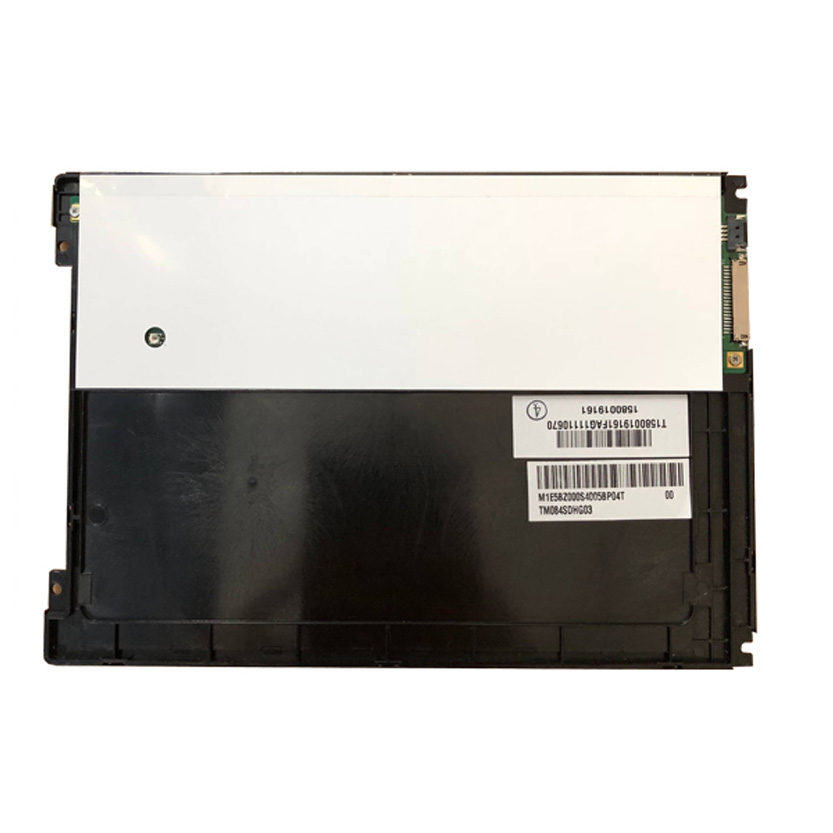

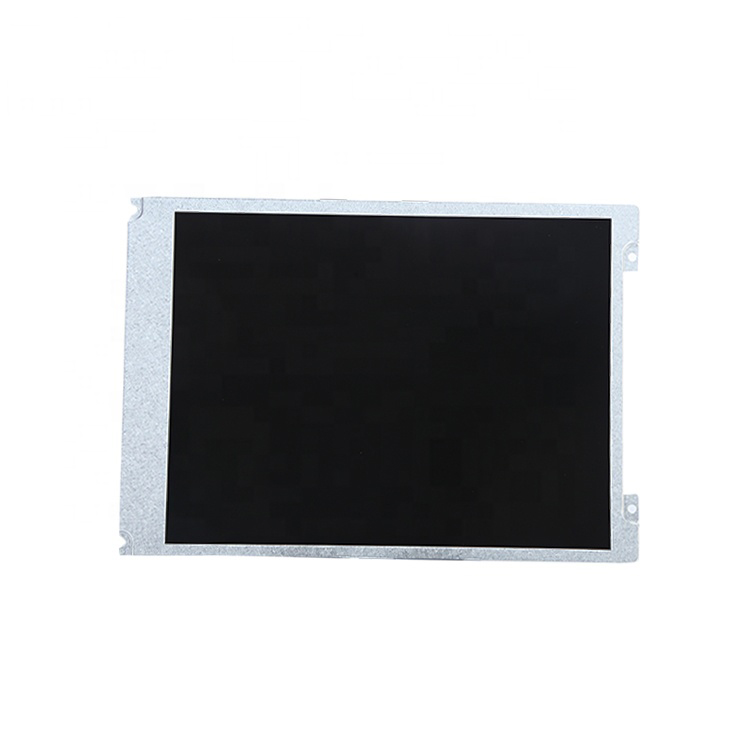

TIANMA TM084SDHG01 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM084SDHG01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 8.4” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight，Life>=50K hours,With LED Driver, U/D,L/R Reverse，6/8bit，Matte | |||
TIANMA TM084SDHG01 Optical Details
| Basic Information : | Luminance | 250 cd/m²(Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Display Colors | 262K/16.7M (6-bit / 6-bit + Dithering) |
Color Temperature | 6638K | White Variation | 1.33(Typ.)(9 points |
TIANMA TM084SDHG01 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600, SVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.071*0.213 (H*V) | Pixel Pitch (W*H) | 0.213*0.213 (H*V) [119PPI] | |
| Physical Size : | Active Viewing(mm) | 170.4(H) *127.8(V) | Bezel Area (mm) | 173.8(H) *131.2(V) |
| Outline Dim.(mm) | 203(H) *142.5(V) | Depth(mm) | 5.7±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel | |||
| Other Spec : | Weight | TBD | Surface | Antiglare |
TIANMA TM084SDHG01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
TIANMA TM084SDHG01 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | TBD | |||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| STARCONN | 107A20-0021RA-G3-R | 1.0mm | 20pins | 1 pcs | LVDS-20P1C8B-140 | ||||||
TIANMA TM084SDHG01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 9S3P | Position | Edge light type | ||||||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 50K(Typ.) (Hours) | |||||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||||||
| E&T | 3808K-F04N-02R | 1.25 mm | 4 pins | 1 pcs | ||||||||||
| Backlight Driver : | With LED Driver | |||||||||||||
| Driver Electrical : | Voltage Supply | 12.0±0.5V | Current Supply | TBD | ||||||||||
| Consumption | TBD | |||||||||||||
TIANMA TM084SDHG01 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 36 pcs / box | TBD | 544*365*250 mm |
