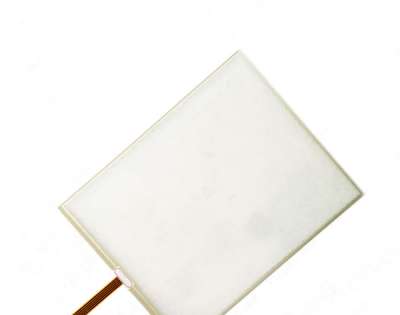

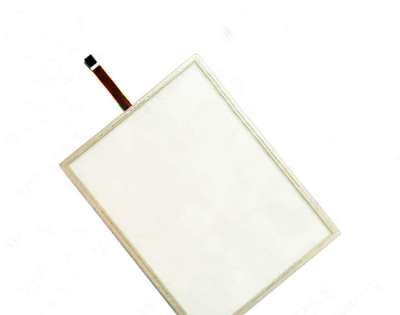

Amt2511 19 inch 5-wire resistance touch screen | |
Brand | AMT |
Model | AMT2511 |
Size | 19” |
Outline(mm) | 404.2*330（H*V）mm |
Active Area(mm) | 378.5*303（H*V）mm |
Operating Temp. | -10 ~ 60 °C |
Storage Temp. | -40 ~ 80 °C |
Click life | >1 million times (single point) |
Transmittance | >80% |
Fogging degree | <13% |
Working voltage | 5V-12V |
Environmental testing | Storage temperature：-40℃～80℃ Operating temperature：-20℃～70℃ |
Transmission speed | 19200baud |
Impedance characteristics | 300-600Ω |
Linear error | <1.5% |
Test method | High temperature test: the test temperature is 80 ℃, store it for 288 hours, take it out and store it at room temperature for 24 hours; Low temperature test: the test temperature is - 40 ℃, stored for 288 hours, taken out and stored at room temperature for 24 hours; High temperature and humidity test: the test temperature is 60 ℃, the humidity is 90rh, stored for 288 hours, taken out and stored at room temperature for 24 hours; Cold and hot shock test: the test temperature is - 40 ℃ and 80 ℃, the storage time is 30 minutes respectively, the cycle is 10 times, and then it is stored at room temperature for 24 hours; Durability test: r8mm / 250g force / single point tapping the touch panel twice per second for more than 10 million times; Writing test: r0.8mm/250g force, draw back 100000 times on a straight line of one inch |
Remarks | Amt2511 5-wire resistance touch screen is suitable for 19 inch Industrial LCD, such as AUO 19 inch g190eg01, etc |
