Brand

GTOUCH

Model

GP-065F-5H-NA02A

Diagonal Size

6.5”

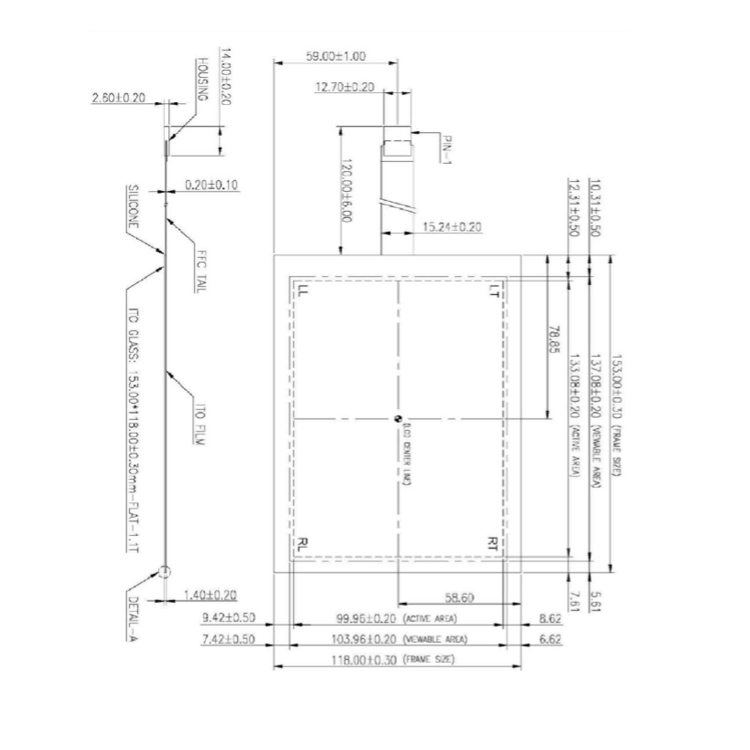

Outline Dim.

153*118mm

Display size

133.08*99.96 mm

Visual size

137.08*103.96mm

Overall Depth

2.2mm

OP Temperature

-20° C ~ +70° C

ST Temperature

-20° C ~ +80° C

OP humidity

20%RH ~85%RH

ST humidity

10%RH ~ 90%RH

Click life

>10000000times（Single point）

Transmittance

>80%

Haze degree

<13%

Working voltage

5V-12V

Environmental testing

Storage temperature: - 40° C ~ + 80° C

 operating temperature: - 20 ° C ~ + 70 ° C

Transmission speed

19200baud

Impedance characteristics

300-600Ω

Linear error

<1.5%

New testing method

High temperature test: test temperature 80 ℃, store 288 hours, take out and store 24 hours at room temperature;

Low temperature test: test temperature - Store at 40 ℃ for 288 hours, take out and store at room temperature for 24 hours ;

High temperature and humidity test: test temperature 60 ℃, humidity 90rh, storage 288 hours, take out at room temperature for 24 hours;

Cold and hot shock test: the test temperature was - 40 ℃ and 80 ℃, and the storage time was 30 minutes each, 10 cycles, and then stored at room temperature for 24 hours;

Durability test: r8mm / 250g force / 2 times per second single touch touch panel, more than 10 million times;

Writing test: R 0.8 mm / 250 g force, draw back 100000 times in a straight line of one inch

Notes

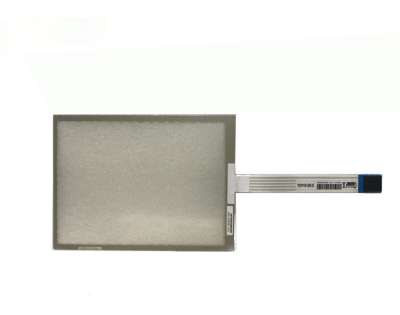

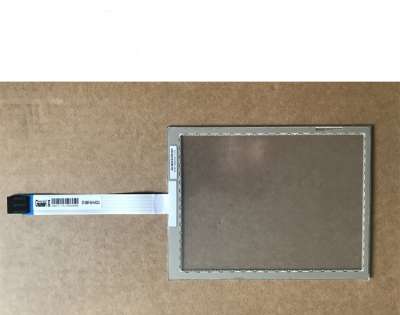

Gp-065f-5h-na02a 5-wire resistive touch screen is suitable for 6.5-inch Industrial LCD screen, such as Youda 6.5-inch g065vn01 V2, etc
