Type and Function of The Polarizer of TFT LCD screen

Date:2023-08-08

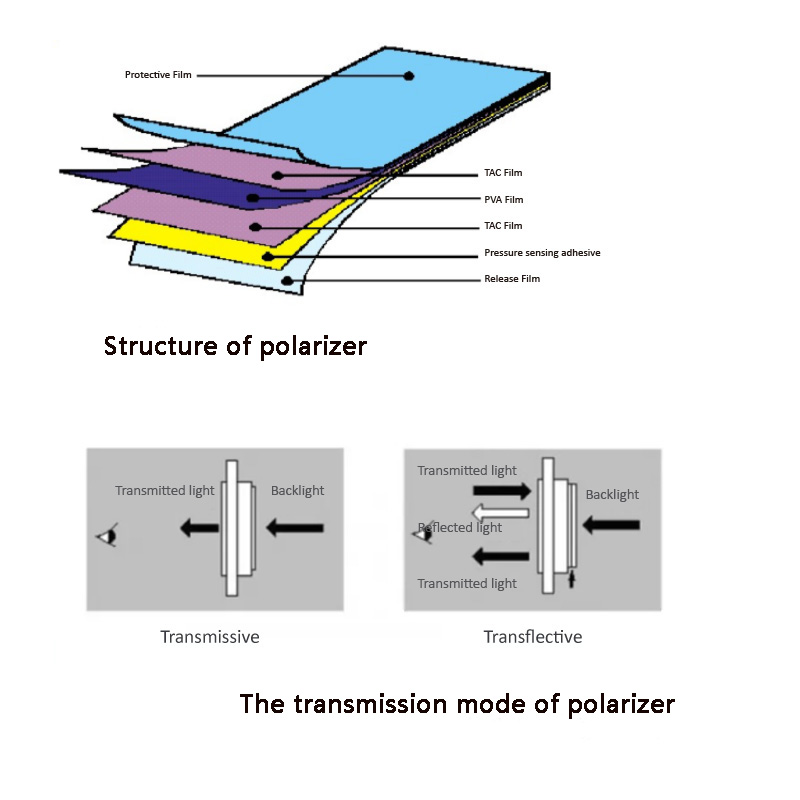

Main categories of TFT LCD screen polarizer:

>>Polarizer with normal viewing angle in TN display mode:

Available thickness: 0.13mm, 0.15mm, 0.17mm, 0.22mm.

Specific products of each thickness for customers to select

1)      Based on different glass viewing angle, there are angle 45° and angle 135°

2)      based on different materials, there are ordinary light, anti-scratch light, AG25 conventional matte, AG40 fine sand, AG13 fine sand, anti-reflection AR, negative film with ARF, etc.


>>Polarizer with full viewing angle in IPS mode

Available thicknesses: 0.11mm, 0.13mm, 0.15mm, 0.17mm.

Specific products of each thickness for customers to select:

1)      Based on different glass, there are angle 7°/83°, 6°/84°, 0°/190°, 173°/97°, etc.

2)      Based on different materials, there are ordinary light, anti-scratch light, AG25 conventional scrub, AG40 fine sand, AG13 fine sand, anti-reflection AR, negative film APF, etc.


At present, the main suppliers of polarizer are ChiMei, Sunnypol and Nitto


In view of this situation, we have a corresponding solution. We use a special polarizer ,whose upper inner protective film has polarization characteristics, which can transform the ray polarized light emitted by the LCD into a circular polarization state, so that it has the visual function under the sun glasses, namely Sunglass Free。



AUO LCD:https://www.auo-lcd.com/products/auo-lcd-screen/
