Features of four wire resistive touch screen products
Suitable for small-sized products, low cost, and mature technology
advantage：
Low power consumption, saving electricity
High material acquisition and mass production yield, making prices less competitive
Low threshold for size production, mature technology, and the ability to produce lightweight and short items
High applicability
Flexible and flexible operation mode, suitable for hands, any gloves, and stylus
High reliability
Not easily touched by mistake
High stability
Anti environmental interference, not limited by external conditions such as electricity and water

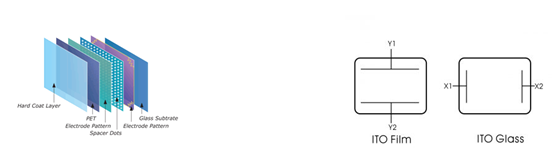

The Action Principle and Product Structure of Four Wire Resistance Touch Screen
A four wire resistive touch screen is a combination of two layers of materials with conductive (ITO) properties, commonly known as conductive thin film (ITO Film) and conductive glass (ITO Glass), separated by insulating Spacer Dots. After the circuit contacts with each other through the upper and lower layers, an analog voltage drop signal is generated, which is then output through the circuit and converted into a digital signal through the controller. Finally, the correct position of the touch is calculated by the computer. Four wire resistors place the X-axis and Y-axis on the film surface and glass surface respectively, and route the wires at both ends of the action zone. At the same time, a fixed voltage is set to create a uniform electric field, and the difference in voltage values detected through it is converted into accurate coordinate positions.
