Features of infrared touch technology products:
Specially designed for large display applications (digital signage&electronic whiteboards) over 32 inches
Multi touch
Can be combined with gestures and software design to achieve ease of operation
high sensitivity
Interpret the signal through infrared LED beam masking, enter the action area, and output the touch position through real-time calculation without touching the display surface.
Long lifespan
LED, as an infrared sensing element, has a lifespan of 50000 hours (averaging over 5 years)
High applicability
The operation method is flexible and flexible, and can be used for hands, any gloves, or touch pens.
High wear resistance
Paired with protective glass covering the display, the surface wear resistance can reach 7H hardness and unlimited single point repeated touch
High reliability
Eliminating interference and erroneous signals through algorithms, making it less prone to accidental touch
High transparency
More than 90% transmittance

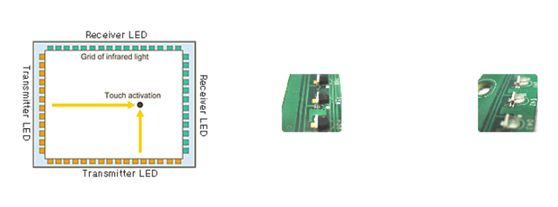

The Action Principle and Product Structure of Infrared Touch Technology
The infrared touch screen operates in the mechanism of infrared LEDs, which are arranged on the two adjacent border edges of the PCB, while the photoelectric sensors are located on the two opposite edges, serving as transmitters and receivers. LEDs emit infrared radiation simultaneously to form a beam of light on the entire display. When users want to send signals through touch, they can send signals by interrupting the beam with a physical object. Since each infrared LED is independent, the touch screen can achieve positioning by analyzing the reduction of light at the corresponding photoelectric sensor. The signal is then processed by the control circuit and sent to the PC to display the coordinates of the touch event on the screen or be used by other software for related signal operations.
