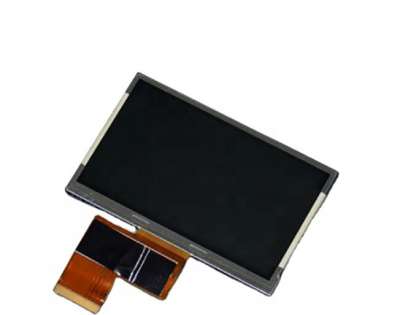

AUO A043FTN03.0 4.3-Inch RGB TFT LCD Module
A043FTN03.0 Product Overview
The AUO A043FTN03.0 is a compact 4.3-inch TFT-LCD module with 480 × 272 WQVGA resolution, 400 cd/m² typical brightness and a parallel RGB interface. Its 16:9 format, thin profile and 45-pin FPC connection make it suitable for evaluation in embedded devices and compact operator interfaces.
The current product record lists a 0 to 60°C operating range and a -20 to 70°C storage range. These values should not be combined or described as a wide operating-temperature specification. Before design-in or replacement, verify the mechanical drawing, FPC pin assignment, timing, voltage and external backlight-driver requirements.
Typical Application Fit
- Compact industrial controls and operator interfaces
- Portable navigation and information terminals
- Embedded monitoring devices
- Test and measurement equipment
- Small-format devices using a parallel RGB display connection
For automotive, medical or other regulated applications, qualification must be confirmed for the complete system. Do not infer application certification from the panel specification alone.
Selection and Integration Checks
- Confirm the 105.5 × 67.2 mm outline and 95.04 × 53.856 mm active area.
- Verify the 45-pin FPC location, pin assignment and 0.5 mm pitch.
- Confirm the controller supports the required parallel RGB timing and signal voltage.
- Design for an external LED backlight driver; the current record does not list an integrated driver.
- Compare the viewing direction and TN viewing-angle requirements with the installed orientation.
- Use 0 to 60°C as the operating range; -20 to 70°C is the storage range.
- Review touch, cover lens, bonding and cable requirements separately.
Replacement Guidance
Do not select a replacement using only 4.3-inch size and 480 × 272 resolution. Compare outline dimensions, active area, FPC position, pin assignment, RGB timing, voltage, backlight circuit, viewing direction and temperature range. Request an engineering review before describing another model as compatible.
Frequently Asked Questions
Does A043FTN03.0 use LVDS or eDP?
No. The current product record lists a 45-pin parallel RGB interface. Select the controller and cable for the verified RGB pin assignment.
Is the operating range -20 to 70°C?
No. The current record lists 0 to 60°C for operation and -20 to 70°C for storage. These values should remain separate in the published page.
Does the panel include an LED driver?
The current record lists no integrated LED driver. Confirm the backlight voltage, current and external driver design against the latest specification.
What should I send for a replacement review?
Send the existing panel label, drawing or datasheet, application, quantity, destination and details of the controller, FPC and backlight circuit.
